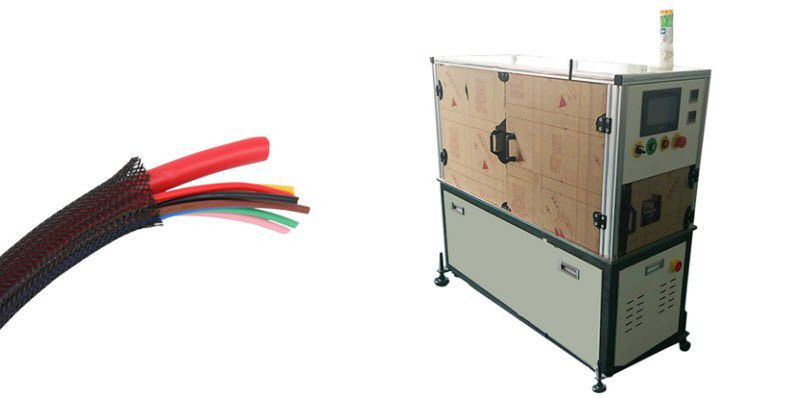

Braided Cable Sleeving Wrap-around Machine YH-BZ1

Views: 568 Author: Site Editor Publish Time: Origin: Site

This automatic braided sleeving wrap-around machine is suitable for threading woven sleevings onto wire harness and cables.

Model: YH-BZ1

machine to wrap-around/install braided sleeving for wires

Contact us for details: sales@yuanhanequip.com


Features

  • This automatic braided sleeving wrap-around machine fuses the woven sleeving according to the set length and send it to the side of the hollow guiding tube for threading.

  • Fast speed, good threading effect, simple operation and precise cutting

  • Suitable for wrapping-around different types of braided sleevings onto wire harness and cables

  • It consists of a fine-tunable photoelectric control system and a PLC control system. The cutting length can be set, and the cutting performance is stable.

  • Applicable products: automotive wiring harness, electronic wire, medical wire, metal, wire and cable, etc.

  • Applicable industries: wire harness processing plant, electronics factory, electrical appliances, hardware, etc.


Operation video of the wire insulation nylon braided sleeve wrapping machine


Technical Data

Model YH-BZ1
Applicable sleeving fiber sleeving (woven mesh sleeving), melt cut materials
Applicable wire range custom type (the wire diameter does not exceed the pipe diameter)
Applicable guide tube range diameter 12-25mm
Cutting accuracy ±3MM
Cutting length

100mm-1200mm

Speed no less than 1000PCS/hour (depending on sleeving size and manual operation speed)
Power single phase AC 220V/50HZ
Energy consumption 400W/Hr
Operating ambient temperature -5 ° C ~ +40 ° C
Relative humidity (40 ~ 90)% RH
Access gas source 0.4~0.6MPA
Weight about 80KG
Dimension 500W*1230L*1115H(mm) (subject to actual production)
Note

Special materials can be customized.



×
