Cable Cutting Unsheathing Machine

Views: 1171 Author: Site Editor Publish Time: 2021-10-27 Origin: Site

This fully automatic cable cutting and sheath stripping machine is able to peel outer skin of single core and multi-core sheathed cables. The applicable wire sizes range from 6-30 sq mm.
Model: YH-8030

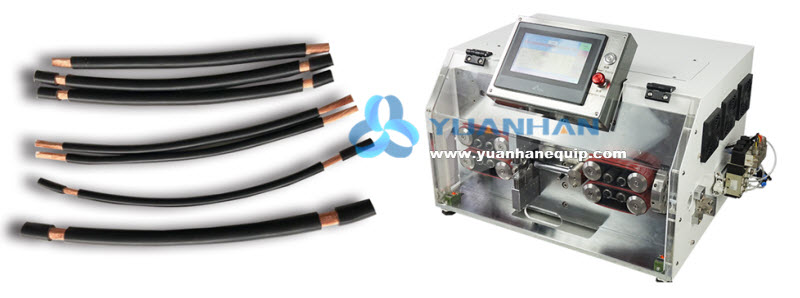

cable cutting unsheathing machine
Features

Function: cutting and stripping
Applicable wire sizes: 6-30 square mm
Strip outer sheath of single conductor cables or multi-conductor cables
Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)
Belt feeding wires, no embossing and scratches
Head stripping: 10-120mm
Tail stripping: 10-240mm
Contact us: sales@yuanhanequip.com

Operation video of the cable cutting unsheathing machine

Technical Data

Model	YH-8030
Display	7 inch true color touch screen
Function	Cutting and stripping
Head peeling	MAX 120mm
Tail peeling	MAX 240mm
Wire type	Sheathed cables, PVC cables, etc.
Stripping range	6-30mm²
Cutting length	1mm-99999.9mm
Cutting tolerance	within 0.002*L (L=cutting length)
Max catheter diameter	Φ16
Tool material	High quality imported high speed steel
Capacity	2300pcs/h
Remarks	The machine can be customized for processing special cables, and the sample cable should be sent to us for test.
