Cable Jacket and Core Wires Stripping Machine

Views: 463 Author: Site Editor Publish Time: 2020-03-17 Origin: Site

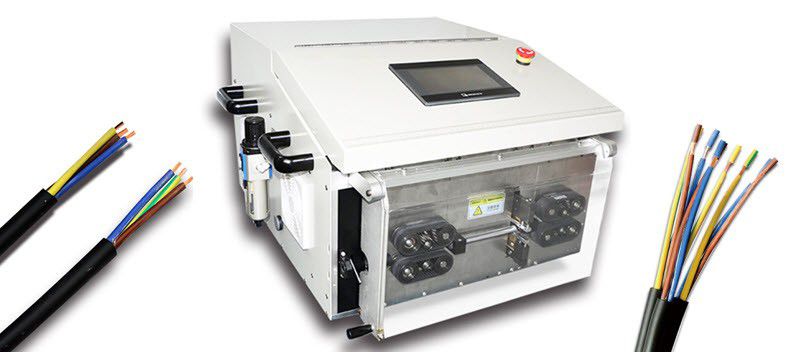

This cable outer jacket and core wires stripping machine is suitable for cutting and stripping multi-core sheathed cables and special single core wires.

Model: YH-8500

outer sheath stripping and inner core insulation stripping machine

Features

This machine is suitable for processing multi-core sheathed cables and special single core wires.
Wire cutting, outer sheath stripping and inner core insulation stripping can be done samutaniously, saving labor and improving processing quality.
Different sets of blades perform wire cutting, the outer sheath stripping and inner core peeling. The incision is neat and the peeling quality is stable.
Up to 100 sets of storage capacity, so that all kinds of processing data can be completely saved and retrieved at any time.

Technical Data

Model	YH-8500
Display	7-inch LCD
Wire diameter	3.0-8.0mm
Min. diameter	0.6mm
Cutting depth unit	0.01mm
Stripping accuracy	±0.1mm
Stripping layer	up to 8 layers (adjustable)
Production efficiency	750-1300Pcs/h (depending on the cutting length, and the maximum speed can be reached when the total length is 100mm)
Rotary blades	2 blades, imported tungsten steel
V blades	2 blades, swedish high speed steel
Power	220/110V 50Hz (customizable)
Air pressure	0.4~0.6Mpa
Weight	102kg
Drive mode	motor\ball screw drive
Dimension	760700400mm
Storage	100 sets of cable processing data
Working environment	0-45 degrees, dry and vibration-free work surface
