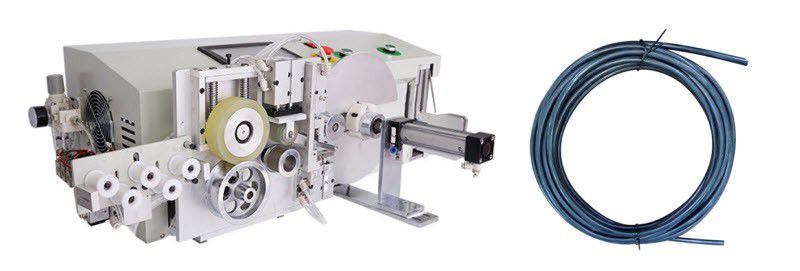

This automatic cable winding and tying machine features counting meter function. It is suitable for processing of AC power cord, DC power cord, USB cable, video cable, and HDMI high-definition cable with different diameters.
Function: counting meters, winding, cutting and tying cables and wires
Suitable for processing of AC power cord, DC power cord, USB cable, video cable, and HDMI high-definition cable with different diameters
The finished product is very neat, being a good helper for bundling wires
Contact us for details: email@example.com
Operation video of the Automatic Wire Winding Machine with Counting Meter Feature
|Winding cycle||1-999 cycle|
|Winding speed||1-4 cycle/s|
|Available wire size||Ø2-7mm or Ø 6-10mm|
|Winding inner diameter||Adjustable from 80 to 250mm|
|Winding outer diameter||Max 300mm|
|Available wire width||10-70mm|
|Suitable wire shape||Round wire, flat/ribbon wire, 2-pin double wires, etc.|
|Power||AC220V 50hz/110v 60HZ|
|Power Rating||Max 1000W|
