Cable Outer and Inner Insulation Stripping and Core Wires Twisting and Tinning Machine

Views: 8 Author: Site Editor Publish Time: Origin: Site

The cable stripping twisting and tinning machine is able to process wire cutting, outer jacket stripping, core wires stripping, twisting, tinning, and tin head cutting.

Model: YH-380

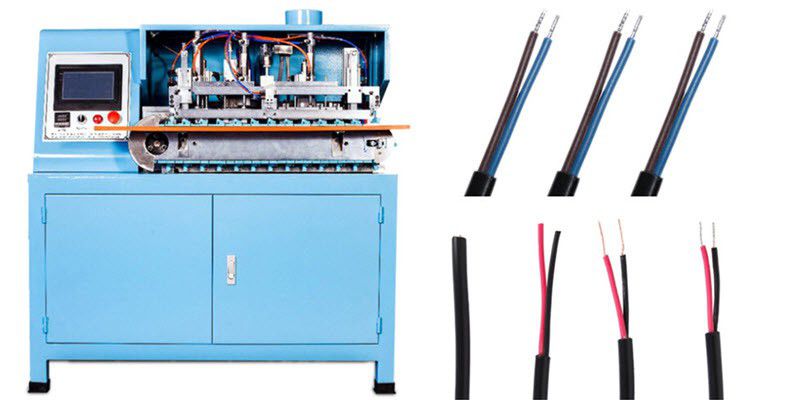

multi-core cable cutting stripping and twisting tinning machine

Features

  • Wire cutting, outer jacket stripping, core wires stripping, twisting, tinning, tin head cutting

  • Human-machine interface, PLC control, stable performance, simple operation, safe and efficient

  • Applicable wires:

    UL2468, double parallel cable, 20-28AWG, chargers, two-core flat wire, SPT-1, SPT-2, H03VVH2-F, RVV, VFF

    Round wire 2464, 20-28AWG, chargers, two-core cables, three-core cables and other wire processing can be customized according to customer requirements

Contact us for details: sales@yuanhanequip.com


Operation video of the multi-core cable cutting stripping and twisting tinning machine


Technical Data

Model YH-380
Capacity 2,300-2,500PCS/H
Stripping length 6mm-12mm
Yield 99.8%
Maximum fork size 20mm-60mm
Voltage AC220V/50HZ
Tinning length 3mm-12mm
Air pressure 0.5-0.7Mpa
Power 0.8kw/h
Machine weight 280KG
Machine size 1100mm*500mm*1110mm


×
