Cable Shield Braid Brushing Machine

Views: 35 Author: Site Editor Publish Time: Origin: Site

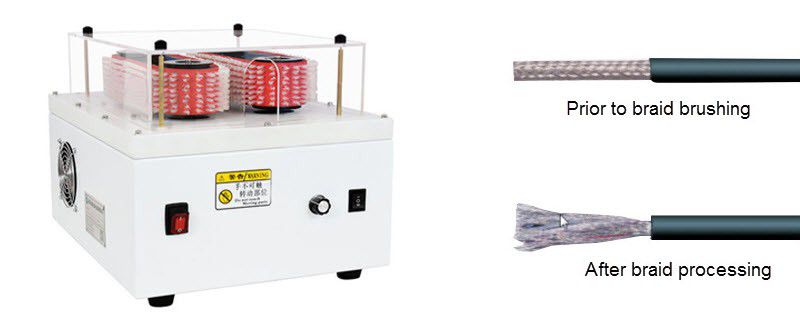

This cable shielding brushing machine can process coaxial cables and special cables with a length of 200mm and an outer diameter of 30mm.

Model: YH-SX50

cable shielding brushing machine

Features

  • Shielded wire woven mesh brushing machine can process coaxial cables and special cables with a length of 200mm and an outer diameter of 30mm. Wire braid brushing can be processed continuously.

  • The operation mode is manual insertion.

  • This machine is convenient and quick. If you need to adjust the pulley spacing during the machining process, just turn the rotating handle on the right side of the fuselage.

  • The electronic part and the mechanical part of the machine are assembled separately, so it is easy and convenient to carry out maintenance and inspection in the future.

  • This machine is designed with a safety cover to protect the operator.

Contact us for details: sales@yuanhanequip.com


Operation Video of Cable Shielding Brushing Machine


Technical details

Model YH-SX50
Brushing wire length 10-200mm
Applicable wire diameter 100 sq mm
Productivity

100-200pcs/h

(depending on cable type and program)

Breaking structure rotating belt wheel (pulley)
Rotation mode electronic control (0-1800 adjustable)
Belt wheel (pulley) 2 pieces (circumference 750*width 62)
Torque 12.5kg
Power supply AC220-240V,50-60Hz
Driver electric
Weight 48kg
Dimensions 420*480*320mm






×
