Kunshan Yuanhan Electronic Equipment Co., Ltd.

Coax Stripping Machine | Coaxial Cable Stripper

Views: 399 Author: Site Editor Publish Time: Origin: Site

The coaxial cable stripping machine is mainly used for the processing of coaxial cables and special single wires. Processing wire type: rf1.13, rf1.78, rf3.16, rg58, rg59 and rg1.41.

Model: YH-2515/YH-2520/YH-3515/YH-4520

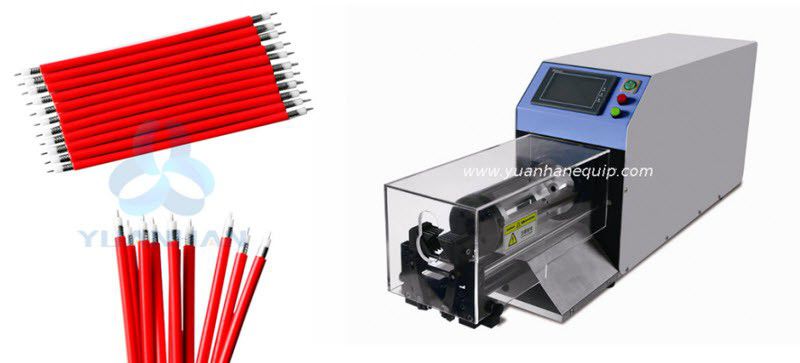

Coax Stripping Machine

Features

  • Suitable for stripping coaxial cables and special single wires

  • Easy-to-use LCD interface, rotary knife, simple tool change, easy setting of each function, control by foot pedal, safe and simple

Contact us: sales@yuanhanequip.com


Operation video of the Coax Cable Stripping Machine


Technical Data

Model YH-2515 YH-2520 YH-3515 YH-4520
Applicable wire

Coaxial cable,

car cable

Coaxial cable,

car cable

New energy cable,

thick cable

New energy charging gun
Peeling length ø0.1mm-ø200mm ø0.1mm-ø150mm 150mm 200mm
Peeling length set unit 0.01mm 0.01mm 0.01mm 0.01mm
Cutting diameter range ø3.0-ø25mm  ø3.0-ø25mm  ø8.0-ø35mm  ø12-ø45mm
Max. stripping layer 9 layer 9 layer 9 layer 9 layer
Peeling method Rotary knife Rotary knife Rotary knife Rotary knife
Tool material Imported tungsten steel Imported tungsten steel Imported tungsten steel Imported tungsten steel
Power
800W 630W
1000W
1000W
Weight
50KG
45KG
60KG
70KG
Dimensions
1000*225*400mm 920*220*400mm 1040*280*550mm

1160*280*550mm


×
