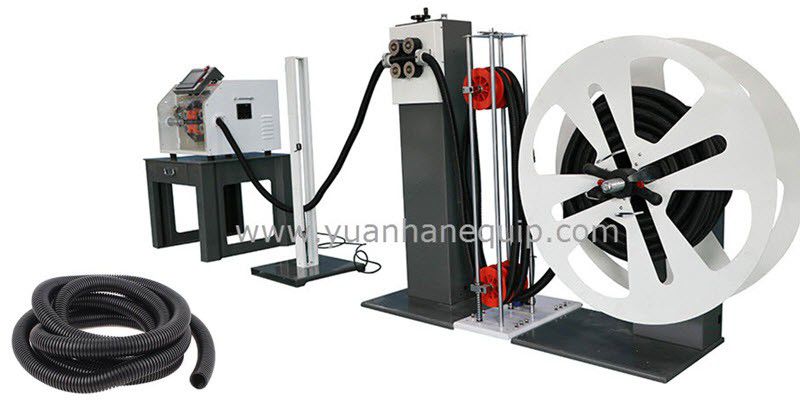

Corrugated Tubing Cutting Machine with Tubing Prefeeder

Views: 388 Author: Site Editor Publish Time: Origin: Site

This fully automatic precise corrugated tube cutting and splitting machine specializes in cutting and splitting corrugated tubes, rubber tubes and other tubes, which is efficient and stable. It can cowork with tubing prefeeder to realize automation.

Model: YH-BW02 + YH-680W

Corrugated Tubing Cutting Machine with Tubing Prefeeder

Features

  • Cutting corrugated tubes, rubber tubes and other tubes

  • Featuring splitting ability

  • Efficient, stable and durable

  • Easy to understand PLC touch screen control

  • Stepper motor control with stable feed and precise length

Contact us for details: sales@yuanhanequip.com


Operation video of the Corrugated Tubing Cutting Machine


Technical Details

Model YH-BW02
Cutting length 5-9999mm
Cutting width 4-25mm
Power 1.0KW
Voltage/Frequency 220/110(V) 50/60Hz
Weight 70kg
Package size 700*580*450mm


Operation video of the wire, cable and tubing prefeeder machine


Technical Details

Model YH-680W
Voltage 220V
Main body material high quality national standard rectangular tube
Take off power

0.75kw domestic brand geared motor with vector inverter, inverter control line speed,

maximum line speed 50m/min, maximum wire diameter 25mm

Cable lift Manual handling of the reel
Coil size

300-1500mm diameter (customer needs to provide specific coil size)

Coil clamping Adaptive drive wheel with a maximum width of 680mm
Max coil weight 1.5T
Tension wheel

The tension wheel is divided into the upper fixed wheel set (3 pcs) and the lower moving

wheel set (3 pcs), and the tension wheel diameter is 140mm.

Speed

When the computer wire stripper works, the tension wheel moves accordingly,

and the potentiometer rotates through the sprocket, and the potentiometer feeds back

the signal to the inverter to control the speed of the pay-off motor, thereby controlling

the speed of the line to be synchronized with the computer stripping machine.

Tension adjustment

Increase or decrease the weight on the chain to adjust the tension of the cable


×
