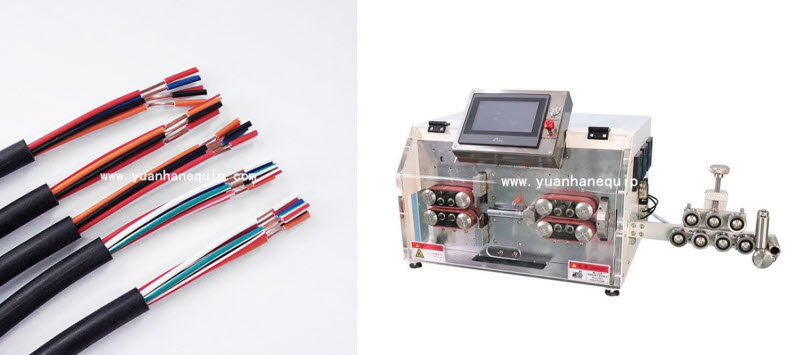

Automatic Cut and Strip Jacket and Inner Conductor Machine

This automatic cut and strip jacket and inner conductor machine is able to process of multi-core jacket cables. It can strip outer skin and inner core skin simultaneously. The applicable wire sizes range from 6-30 sq mm.
Model: YH-8030H

Features
○ Function: cutting and stripping

○ Applicable wire sizes: 6-30 square mm

○ Strip outer skin and inner core skin of multi-conductor cables simultaneously

○ Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

○ Belt feeding wires, no embossing and scratches

○ Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm

○ Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240mm
Contact us: sales@yuanhanequip.com

Operation video of the automatic cut and strip jacket and inner conductor machine

Technical Data
