Double Layers Nylon Rope Heat Cutting Machine

Views: 12 Author: Site Editor Publish Time: Origin: Site

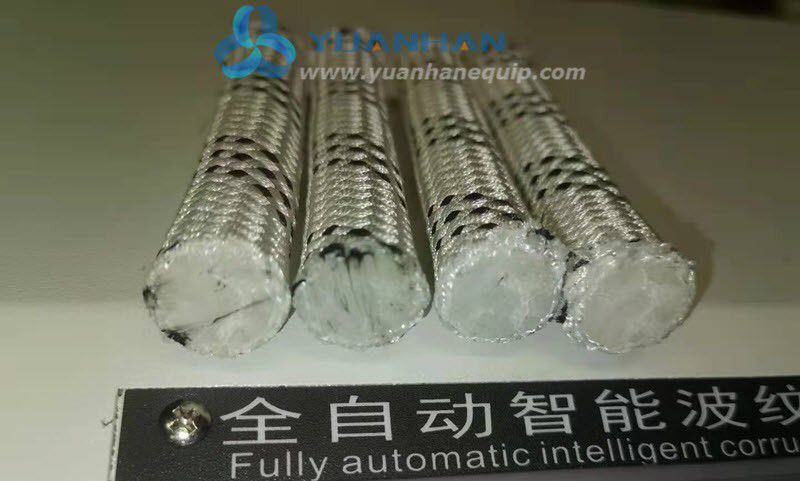

This is a hot blade nylon rope cutting machine. It is suitable for cutting double braided nylon ropes with the hot melt cutter.

Model: YH-RQ400

Double Braided Nylon Rope Hot Cutting Machine

Features

  • Suitable for cutting of double braided nylon ropes with the hot melt cutter

  • Efficient, stable and durable

  • Easy to understand PLC touch screen control

  • Stepper motor control with stable feeding and precise cutting length

Contact us: sales@yuanhanequip.com


Operation video of the Double Layers Nylon Rope Heat Cutting Machine


Technical Data

Model
YH-RQ400
Cutting accuracy ± 0.1mm
Cutting length 0.1-99999.9.mm
Rope cutting diameter Max. φ20mm
Cutting speed 60-210pcs/min (depending on cutting length)
Power AC220V, 560W
Maximum temperature 460℃
Dimensions 650*480*420mm(L*W*H)
Gross weight 87kg
Net weight 66kg


×
