FFC FPC Cable Crimping Machine, FFC FPC Cable Termination Machine

Views: 478 Author: Site Editor Publish Time: Origin: Site

This is a semi-automatic machine for crimping connectors onto FFC / FPC cable and membrane switch flexible tail or flexible circuit.

Model: YH-MS02

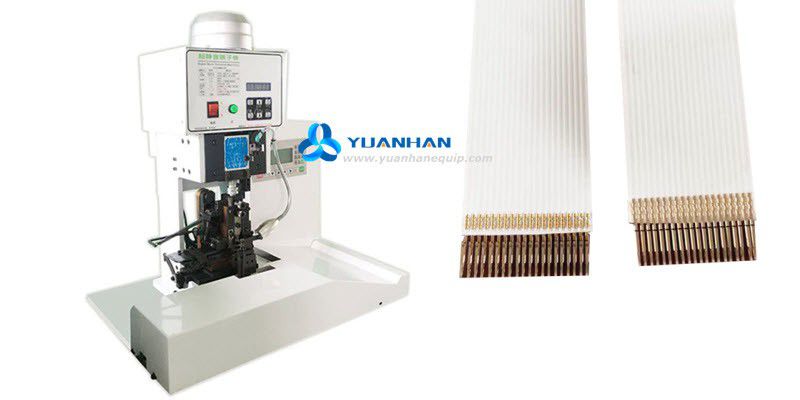

FFC FPC Cable Crimping Machine

Features

  • Function: membrane switch one-side terminal crimping

  • The terminals are pressed neatly with good consistency and stable quality

  • Adopting high precision inverter, SMC pneumatic components, and PLC control system

  • Using stepper motor, the crimping pressure is accurate, ensuring continuous performance

  • High efficiency: up to 10K pcs/hour

Contact us: sales@yuanhanequip.com


Operation video of the FFC FPC Cable Crimping Machine


Technical Data

Model YH-MS02
Function Membrane switch single end crimping
Power supply AC220V, 50/60Hz
Power 750W
Standard P number 2P-20P
Crimp force  2.0T
Dimensions 600*400*650mm
Weight 65KG


×
