Fully Automatic IDC Connector Piercing Crimping Machine

Views: 376 Author: Site Editor Publish Time: Origin: Site

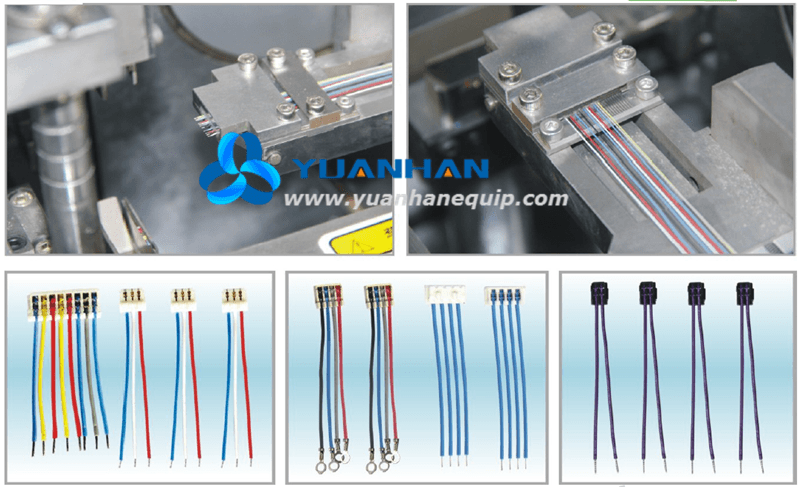

The fully automatic IDC conector piercing crimping machine is able to process wire cutting, one end piercing crimping, the other end stripping, twisting & tinning simutaneously, and the wires in the same product can be processed to different lengths.

Model: YH-1020A

Fully Automatic IDC Connector Piercing Crimping Machine

Features

  • Adopts PLC control system and Mitsubishi servo motor to ensure high precision, high efficiency and high stability.

  • Cutting length, stripping length, puncture depth, and tin depth can all be set by touch screen.

  • All the faults of the machine are displayed on the touch screen, so that you can know the cause of the machine failure at a glance and quickly adjust the machine to the best condition.

Contact us: sales@yuanhanequip.com


Operation video of the Fully Automatic IDC Connector Piercing Crimping Machine


Technical Data

Model YH-1020A
Voltage VAC 220V/50Hz, 110V/60Hz
Functions

Wire cutting, one end piercing crimping, the other end stripping, twisting & tinning,

and the wires in the same product can be processed to different lengths

Spacing 0.6mm-3.96mm
Stripping tolerance 0.01mm
Tool value accuracy 0.01mm
Wire cutting length 10mm-800mm
Wire stripping length 0mm-10mm
Efficiency 700piece/hour (Based on actual wire terminal)
Weight about 350kg
Dimensions 235x100X160cm


×
