Garment Label Roll-to-piece Cutting Machine, Clothing Care Label Cutting Machine

Views: 472 Author: Site Editor Publish Time: Origin: Site

ZCUT-103B is usually used for garment label cutting. Cold cutting is suitable for nylon belts, adhesive plaster and paper tapes. After heating, it becomes hot cutting, and can cut adhesive tapes and other webbing materials like ribbon, nylon belt woven, cotton belt, cloth trademark, etc.

Model: ZCUT-103B

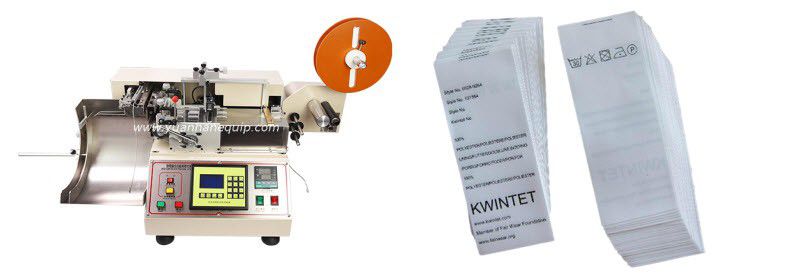

Garment Label Roll-to-piece Cutting Machine

Features

  • Cutting materials: all kinds of trademarks/labels, ribbons, nylon belt woven, cotton belt, cloth belt, etc.

  • Cold and hot cutting available: the cold cutting is suitable for cutting nylon belts, adhesive plaster and paper tapes, and the hot cutting can cut adhesive tapes and other webbing materials like ribbon, nylon belt woven, cotton belt, cloth trademark, etc.

  • The cutting surface is flat and soft, no burrs, no loose edges

  • Cutting length: 1-99cm; Cutting width: 1-12.5cm; Cutting speed: 300pcs/min

  • High precision: use the sensor to track the position of the cutting position of the trademark

  • Features automatic-stop function without material

  • Equipped with anti-static device to eliminate static electricity generated when cutting off the trademark

  • Adopts PLC program control, automatic feeding, computer counting, high precision and high speed.

  • Automatically store cutting length and cutting quantity

  • Automatically stacking finished labels neatly, saving time and effort

Contact us: sales@yuanhanequip.com


Operation video of the Garment Label Roll-to-piece Cutting Machine


Technical Data

Model ZCUT-103B
Power 220V/1.5KW
Weight 60KG
Dimension 80*46*60cm
Cutting length 1-99cm
Cutting width 1-12.5cm
Cutting speed 300pcs/min


×
