High performance wire and cable cut and strip machine

Views: 469 Author: Site Editor Publish Time: Origin: Site

This high speed wire cutting stripping machine is suitable for processing USB, AC, RGB, 1394, DC power cables and so on with high efficiency. It can process wire cutting, both ends stripping, single end stripping and half stripping with high speed. Applicable wire sizes range from AWG#10 to #28.

Model: YH-950

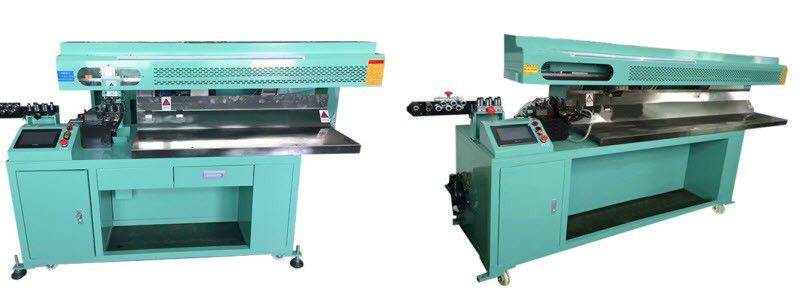

High Speed Wire Cutting Stripping Machine

Features

  • This machine is suitable for processing USB, AC, RGB, 1394, DC power cables and so on. The external machine and wire dividing device can be used synchronously, which greatly improves production efficiency.

  • Applicable wire sizes: AWG#10~#28

  • This machine can process wire cutting, both ends stripping, single end stripping and half stripping with high speed.

  • It adopts servo motor to control wire cutting and peeling, so that the cutting length and peeling length are more accurate.

  • The change of stripping length, the change of full stripping and semi-stripping can be set quickly and easily.

  • The speed can be set according to wire size.

  • 950mm, 1300mm, 1600mm, 2100mm wires and cables can be cut and stripped at the same time with high efficiency.

Contact us for details: sales@yuanhanequip.com


Operation video of High Speed Wire Cutting Stripping Machine


Specifications

Model  YH-950
Power    1.0KW
Power Supply AC 220/380V
Stripping Length  3~100mm
Cutting Length   42~99999mm
Wire Type USB, AC, RGB, 1394, DC, PVC, etc.
Wire Size AWG#10~#28
Dimension  1700*750*1500mm
Weight 400KG

Learn more about the High Speed Wire Cutting Stripping Machine


×
