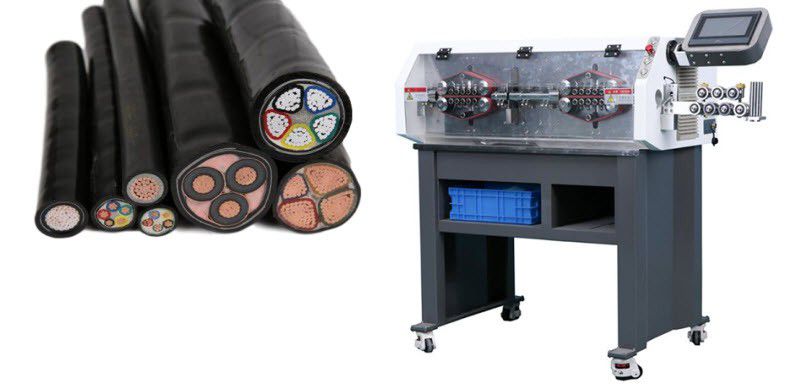

This fully automatic large cable cutting and stripping machine is suitable for the processing of large power cables, High-voltage Cables, sheathed wires, soft and hard wires. It can cut and strip the insulation at both ends, and can also carry out multi-level stripping processing at the same time. Stripping sizes: 10-70 square mm. Cutting lengths: 0.1-99999.9 mm.
This machine is a new type of cable processing equipment controlled by microcomputer. It is mainly used in the automotive industry, power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, charging pile harness, charging gun wiring harness, BV hard wire, and BVR soft wire
Cutting length: 0.1-99999.9mm; Stripping wire sizes: 10-70 mm2
It can set the length of the wire as needed, set the head peeling and tail peeling, which greatly improves the efficiency
Automatically cut and strip the insulation at both ends, and can also carry out multi-level stripping processing at the same time
Industrial grade control chip with high-precision motor and driver, enabling the machine to operate at high speed for a long time
Using controller control, touch screen operation mode, can save 100 sets of stripping procedures
Can easily process cables up to 70 Sq mm and strong power is the guarantee to improve the efficiency of work
This machine has strong functions, and it has multiple ports reserved for the input and output signals of some auxiliary equipment
Auxiliary equipment: automatic wire feeder, receiver, robot, winding machine, etc.
Contact us for details: email@example.com
Operation Video of the High-voltage Cable Cutting and Outer Jacket Stripping Machine
|Display mode||7 inch real color touch screen|
|Function||wire cutting and stripping|
|Head stripping||RV cable is up to 120mm, and sheathed wire is up to 500mm|
|Tail stripping||up to 260mm|
|Cable types||PVC cables, sheathed wires, etc.|
|Stripping size||10-70 mm2|
|Cutting tolerance||within 0.002*L(L=cutting length)|
|Blades material||imported high speed steel|
|Driving mode||32 wheel drive (silent hybrid stepping motor, servo tool holder)|
|Feeding method||Feeding with belt, the cable has no indentation|
|Remark||The machine can be customized for processing special cables, and the sample cable should be sent to us for test|
