Pneumatic Cable Jacket Stripping Machine with Rotary Blade

Views: 476 Author: Site Editor Publish Time: Origin: Site

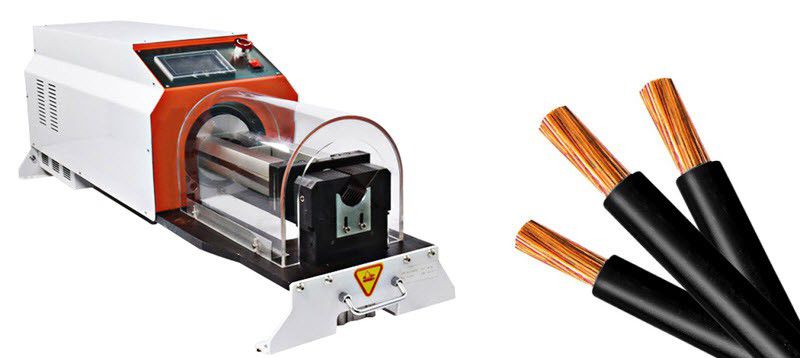

This rotary knife pneumatic wire stripping machine is mainly used for stripping large cables. It is a special machine for processing of new energy DC cables. Maximum wire diameter is 50 mm, and max stripping length is 100 mm.

Model: YH-300

Pneumatic Rotary Blade Wire Stripping Machine

Features

  • This machine is mainly used for stripping large cables, such as new energy DC cables

  • High precision rotating and strong peeling

  • Maximum wire diameter is 50 mm, and max stripping length is 100mm

  • Adopt double blades, change without correction, automatically find the machining center, which greatly increases the productivity

Contact us for details: sales@yuanhanequip.com


Operation Video of Pneumatic Rotary Knife Wire Stripper Machine


Technical Data

Model YH-300
Control system Dedicated controller
Stripping method Rotary peeling
Stroke 0-300mm
Voltage 220V 50-60HZ
Air pressure 0.5-0.7Mp
Power 200W
Stripping diameter ø10-ø50mm
Stripping tolerance ±0.2
Speed 20-40pcs/min
Size 1000x450x350mm
Weight 80KG


×
