Kunshan Yuanhan Electronic Equipment Co., Ltd.

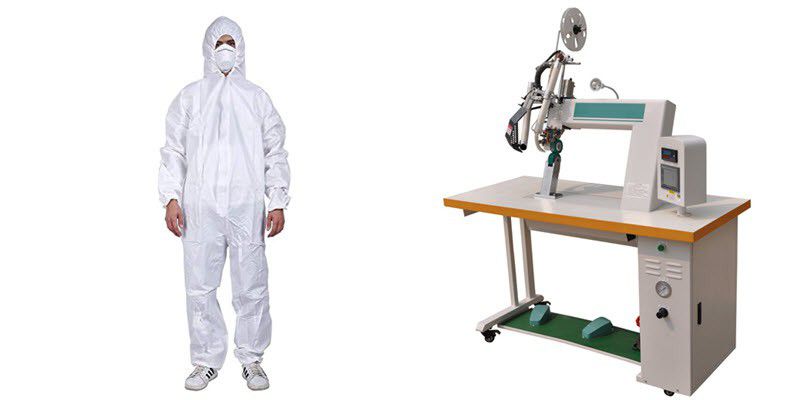

This hot melt taping machine is suitable for hot sealing protective clothing, rainproof clothing, tents, and other outdoor apparel.
Model: RF-V1
Features
Flexible operation, convenient maintenance, especially suitable for factory continuously working.
Suitable for rainproof clothing, tents, outdoor apparel and other special equipment.
The machine has a slanted design that widens the line of sight for more precise machining, making workers less prone to fatigue.
An independent heating system increases the stability of the hot air temperature and saves pumping consumables and is more energy efficient.
Contact us for details: sales@yuanhanequip.com
Operation video of the protective clothing sawing machine
Technical Data
Model | RF-V1 |
Power requirements | single-phase 220 v + 10% for 50/60 hz |
Power consumption | 1.5 KVA |
Air compressor | 2.2 KW |
The wheel width | 30 mm/optional |
To do tape width | 12-23 mm/optional |
The highest temperature | up to 799 ℃ |
Speed | 1-15 m/min, the digital display operating speed (stepless adjustment) |
Heating tube power | 2500 W |
