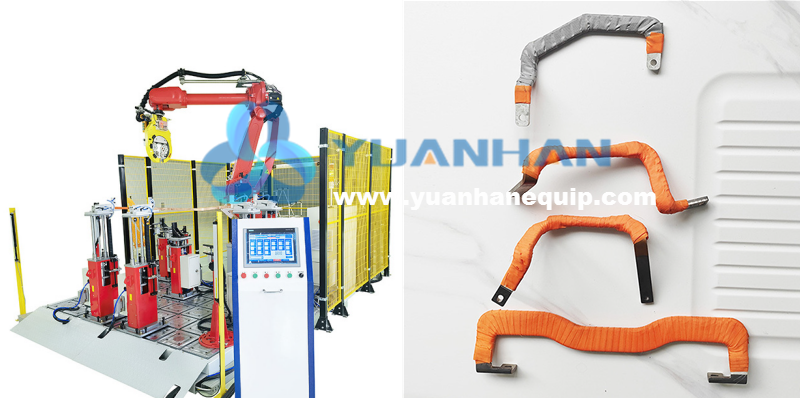

Special-Shaped Copper Busbar Tape Wrapping Machine

The special-shaped copper busbar tape wrapping machine is a professional automatic equipment independently developed for the insulation and protection wrapping of special-shaped copper busbars. It is widely applied in the production and processing of new energy battery packs, high and low voltage switchgear, power distribution cabinets, energy storage systems and other fields, solving the industry pain points of difficult wrapping, uneven tape application and low efficiency of irregularly shaped copper busbars such as L-shaped, U-shaped and custom-shaped ones.

Contact us: [email protected]

Equipped with a high-precision five-axis drive system and servo control technology, the machine can flexibly adjust the position and angle of the tape wrapping device through X-axis, Y-axis and Z-axis translation and dual rotation mechanisms, ensuring close and uniform wrapping of tape on every part of the special-shaped copper busbar, without bubbles, wrinkles or loose wrapping. The core components adopt imported high-quality brands, matching with linear guide rails to ensure stable operation, high positioning accuracy and low failure rate during long-term work, effectively extending the service life of the equipment.

The machine supports a variety of wrapping modes, including continuous full wrap, intermittent wrap and point-to-point continuous wrap, which can be freely adjusted according to production needs. It is compatible with various types of insulation tapes, such as PVC insulation tape, mica tape, polyester tape, fiberglass tape and polyimide tape, meeting the different insulation protection requirements of special-shaped copper busbars in different working environments. The wrapping speed is adjustable from 10 to 1500 r.p.m., and the wrapping tightness can be precisely controlled, realizing efficient and standardized production.

With a humanized design, the machine is equipped with a high-definition touch screen human-machine interface, which makes parameter setting intuitive and easy to understand, and supports manual and automatic dual operation modes. It is equipped with a safety protection cover and grating sensors to effectively prevent operational risks and ensure the safety of operators during the working process. The modular structure design facilitates later maintenance and repair, reducing the life cycle cost of the equipment.

Compared with traditional manual wrapping, this machine greatly improves production efficiency, reduces labor costs, and avoids insulation layer damage caused by human operation errors, thus ensuring the insulation performance and safety of special-shaped copper busbars. It can be customized according to the specific size, shape and wrapping requirements of customers' special-shaped copper busbars, providing personalized and professional solutions for enterprises in the electrical and new energy industries, helping to improve product quality and enhance market competitiveness.
