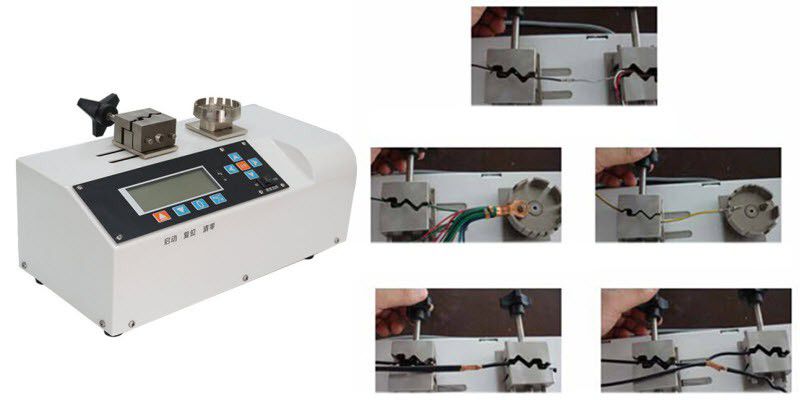

Tensile Testing Equipment for Crimped Wire Terminals YH-TT03

Views: 531 Author: Site Editor Publish Time: Origin: Site

This is a high-precision testing instrument for processing wire and cable tensile testing for wire harness manufacturing industry.

Model: YH-TT03

tensile testing equipment for wire

Features

  • Processing wire and cable tensile testing for wire harness manufacturing industry

  • Special fast jig for wire harness, automatic test, force sensor adopts original NTS sensor imported from Japan

  • The loading device is driven by motor, and the load measurement adopts imported load sensor with high precision and stability

  • The control part adopts full digital microprocessor control, force value LCD display and expandable PC interface for convenient data processing

  • The wire tensile testing machine is compact, easy-to-use, accurate in control, high in measurement accuracy, and convenient for specimen mounting. It is the ideal equipment for wire harness manufacturers to ensure product quality

Contact us for details: sales@yuanhanequip.com


Operation video of the wire tensile strength testing machine


Specifications

Model YH-TT03
Measuring range 0~1000(N)or  0~100(Kg)
Unit of measurement kilogram(Kg)/Newton(N)
Display 6-digit LCD display
Sensor accuracy +0.2% (full scale)
Power supply voltage 220V/50Hz; 110V/60Hz
Working environment -10℃~50℃
Maximum stroke 43(mm)


×
