Terminal Crimp Section Analysis Equipment

Views: 456 Author: Site Editor Publish Time: Origin: Site

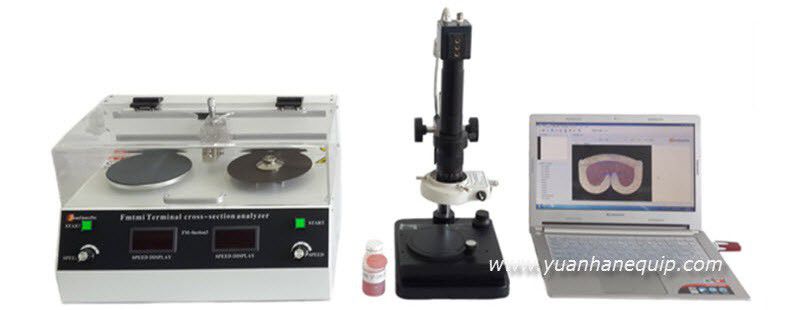

The Terminal Crimp Section Analysis Equipment is designed to detect the quality of crimping terminal. It includes the following modules: terminal fixture, cutting and grinding, corrosion cleaning, cross-section image acquisition, measurement and data analysis, generate data reports. It only takes about 5 minutes to complete the cross-setion analysis of a terminal.

Model: YH-SE3

Terminal Crimp Section Analysis Equipment

Features

  • Mainly used for cross section testing of terminal after crimping

  • Exquisite and portable in structure design, and easy to operate

  • High quality optical instrument with low distortion and image capture module

  • Optical instrument with safety protection device, and easy for transportation

  • Automatic cutting module, with high-speed grinding module with fine adjustment

  • Testing result is automatically generated from the relevant software

Contact us: sales@yuanhanequip.com


Operation video of the Crimp Cross Section Machine




Technical Data

Model YH-SE3
Terminal cross section analysis Japan imported segmentless zoom optical system
Total video magnification 30~312X
Applivable wire range 0.01~33mm2
Power supply 100~240VAC, 50/60Hz
Imaging system Japanese industrial HD video system 5 million
Cut blade specifications Φ150X0.5mm(Imported from Germany, delicate and durable)
Abrasive sandpaper 1200#
Standard fixture 0.01-33mm2
Professional high-precision reference ruler 0.01/10mm
Terminal corrosion Liquid cleaning (5S completed)
Lighting source All white adjustable LED lighting device
Dimensions W500XD350XH350
Feature

Precision integrated automatic cutting and grinding equipment,

German motor 0~4000rpm stepless speed regulation, professional

terminal cross section analysis software Section-MS with encryption

lock and CD

×
