Terminal Cross Section Analysis System

Views: 745 Author: Site Editor Publish Time: Origin: Site

Introducing our Terminal Cross Section Analysis System, the ultimate tool for detecting and analyzing the quality of crimping terminals. Designed with utmost precision and cutting-edge technology, this analyzer is an essential tool for any professional looking to ensure the integrity of their electrical connections.

Equipped with a range of modules, the Terminal Cross Section Analysis System guarantees accurate and reliable results. The terminal fixture module provides a secure and stable platform for holding the terminal during the analysis process. The cutting and grinding module ensures clean and precise cross-sectional cuts, allowing for a clear and detailed view of the terminal structure.

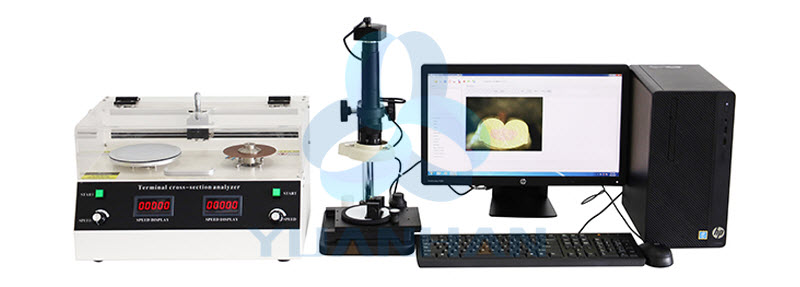

Terminal Cross Section Analysis System
Contact us: sales@yuanhanequip.com

In addition, our system includes a corrosion cleaning module, eliminating any unwanted debris or oxidation that may affect the terminal's performance. The cross-section image acquisition module captures high-resolution images of the terminal, enabling thorough examination and analysis.

One of the standout features of our Terminal Cross Section Analysis System is its efficient measurement and data analysis capabilities. With just a few simple steps, users can measure critical parameters such as conductor height, insulation thickness, and terminal deformation. The system automatically generates comprehensive data reports, saving valuable time and effort.

With a quick and streamlined operation, our Terminal Cross Section Analysis System completes the entire cross-section analysis process in approximately 5 minutes. This not only improves efficiency but also ensures productivity, making it an indispensable tool for professionals in various industries.

Trust in the precision and reliability of our Terminal Cross Section Analysis System. From automotive to aerospace applications, this system guarantees accurate analysis and thorough inspection of crimping terminals. Don't compromise on quality; invest in our Terminal Cross Section Analysis System today.

Operation video of the Terminal Cross Section Analysis System

×
