Thread Tape Applicator - Automatic PTFE Taping Machine

Views: 675 Author: Site Editor Publish Time: Origin: Site

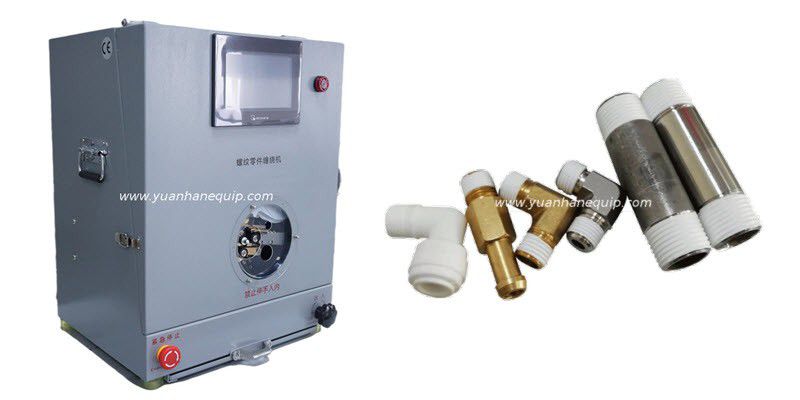

This automatic PTFE thread seal taping machine is suitable for wrapping Teflon/PTFE tape for all screwed joints, including pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal joints and so on. It highly improves production efficiency.

Model: YH-1309

Thread Tape Applicator

Features

  • Easy to operate, no need for skilled workers, the number of turns and winding speed can be set

  • High efficiency and high quality, no rework and loss

  • Finishing a complete process in an average of 3 seconds

  • 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces

  • Winding closely and tightly, not easy to fall off

  • The data of servo drive is accurate, reliable and stable

Contact us: sales@yuanhanequip.com


Operation video of the Thread Tape Applicator


Technical Data

Model YH-1309
Tape width 5mm, 7mm, 10mm, 14mm (min.3mm, max.16mm customizable)
Fitting diameter 1/8-2 inches (2.5 inches can be customized)
Working speed 3-5 seconds/pcs (wrap 2-3 circles)
Type electric and automatic with air source
Voltage 220/110VAC; 50/60Hz
Pressure 0.45-0.6Mpa
PLC H1U-0806MT-XP
Motor IS620PS5R5I/SMH1-75B30CB-U231Z servo driver and servo motor
Touch screen TK6071P
Weight 78KG
Size 72*52*52cm


×
