Ultrasonic Wire Splicer, Ultrasonic Cable Splice Crimping Machine

Views: 676 Author: Site Editor Publish Time: Origin: Site

The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on. The welding harness area is from 0.5mm2-30mm2.

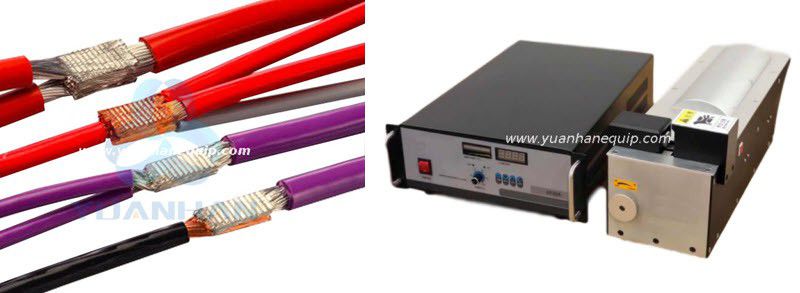

Ultrasonic Wire Splicer

Features

  • The power of the equipment is divided into 2000W, 3000W, 4000W. The welding harness area is from 0.5mm2-30mm2. It can be welded at one time. It is mainly used for lap welding of automobile wiring harness, wire head forming, wire mutual welding, multiple wires and butt joints, as well as mutual welding into a knot;

  • The whole machine is integrated design, the equipment is small in size, light in weight, beautiful in appearance and convenient to move;

  • Adopt PLL lock-in frequency automatic tracking technology to ensure the welding effect;

  • Good electrical conductivity after welding, low resistivity or near zero;

  • Suitable for welding copper wire and aluminum wire, such as copper and aluminum wire harness, metal braided wire, metal stranded wire, wire harness terminal, enameled wire, motor lead wire, etc.

  • The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.

Contact us: sales@yuanhanequip.com


Operation video of the ultrasonic wire splicer


Technical Data

Model YH-X2020A YH-X2030A YH-X2040A
Power 2000W 3000W 4000W
Welding area 0.5-16 mm2 0.5-20 mm2 1-30 mm2
Working air pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Working frequency 20KHz 20KHz 20KHz
Working voltage 220V 220V 220V


×
