Wire Middle Stripping Machine, Cable Center Skinning Peeling Machine, Middle Stripping Machine

Views: 665 Author: Site Editor Publish Time: 2021-03-10 Origin: Site

YH-P15 wire intermediate stripping machine is a professional equipment in the process of wire harness crimping. It can realize the middle stripping function of various cables.

Model: YH-P15

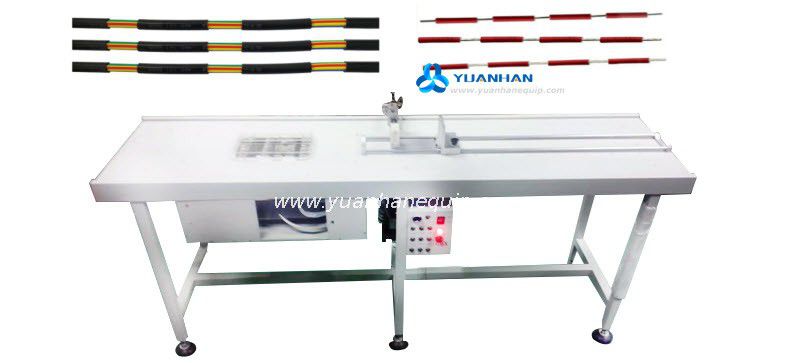

Wire Middle Stripping Machine

Features

The wire middle peeling machine adopts a fully pneumatic mechanism to achieve efficient partial stripping, and uses an imported PLC to achieve precise control.
Wire range: 0.5-4.0 mm² (can be customized)
Partial Stripping Length: 20mm (can be customized)

Wire Middle Stripping Machine Operation Video

Technical Data

Model	YH-P15
Wire range	0.5-4.0 mm² (can be customized)
Partial stripping length	20mm (can be customized)
Distance between stripping to wire end	more than 100mm (can be customized)
Cycle time	3-4 seconds
Voltage, frequency	220v-250v, 50Hz
Power	200W
Voltage fluctuation	±10%
Air pressure range	0.5-0.8Mpa
Weight	75kg
Dimensions	W2000xD500xH900mm
