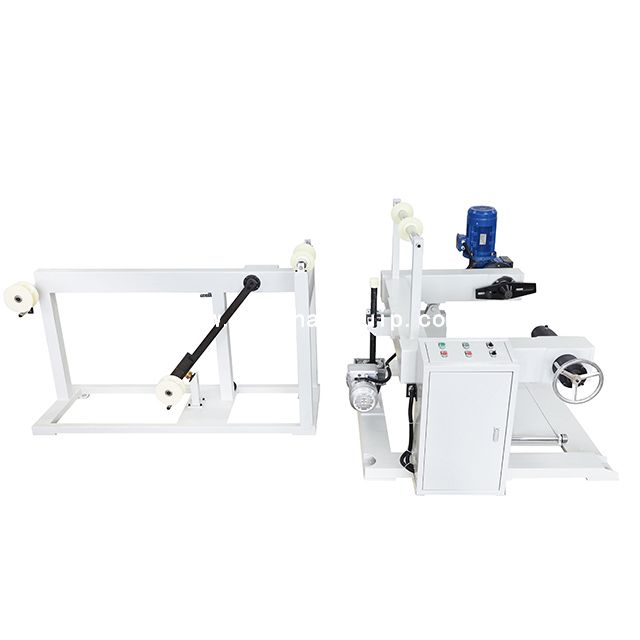

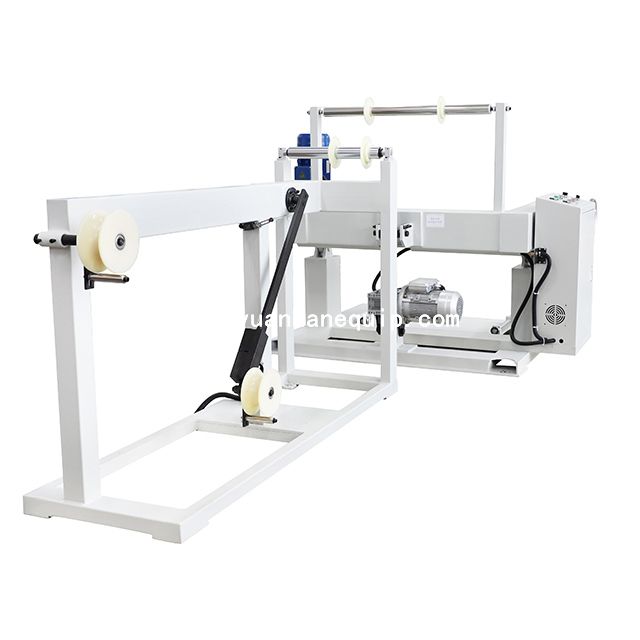

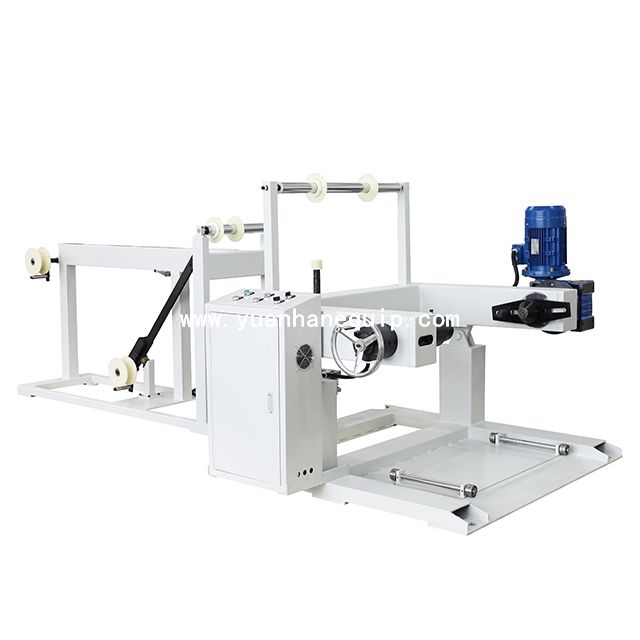

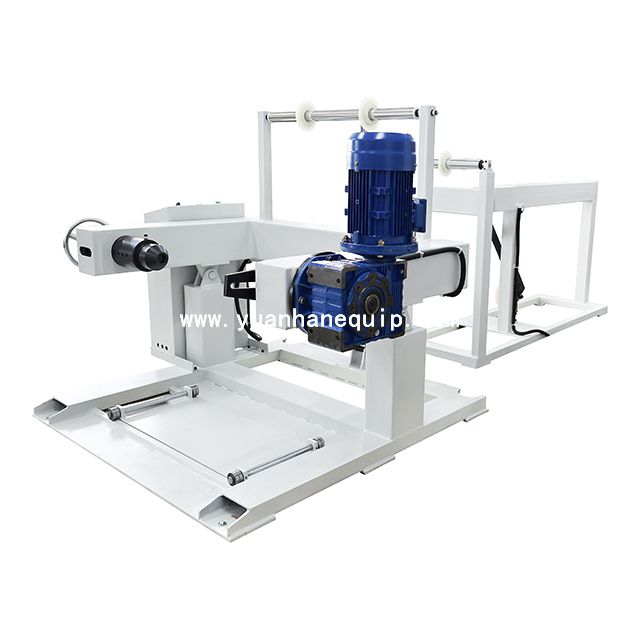

1.5T Large Cable Prefeeder Machine1.5T Large Cable Prefeeder Machine

This large cable prefeeder machine is suitable for automatic pay-off of large cables such as new energy vehicle cables, charging pile cables, power cables, photovoltaic cables, and BV cables.

Model:
  • YH-1250
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Application: Automatic pay-off of large cables such as new energy vehicle cables, charging pile cables, power cables, photovoltaic cables, and BV cables.

  • Pay-off method: shaftless power pay-off, frequency converter automatically controls the pay-off speed, automatic wire feeding, automatic shutdown.

  • Pay-off tension: mechanical swing bar structure, move the counterweight to adjust the pay-off tension.

ModelYH-1250
Suitable wire diameterφ3-45
Applicable spoolouter diameter: φ600-1250mm, width: 550-950mm
Maximum load1.5T
Maximum pay-off speed100m/min
Host power5.5kw
Total weightabout 700kgf
Power supplythree-phase four-wire system AC380V, 50/60Hz



×
