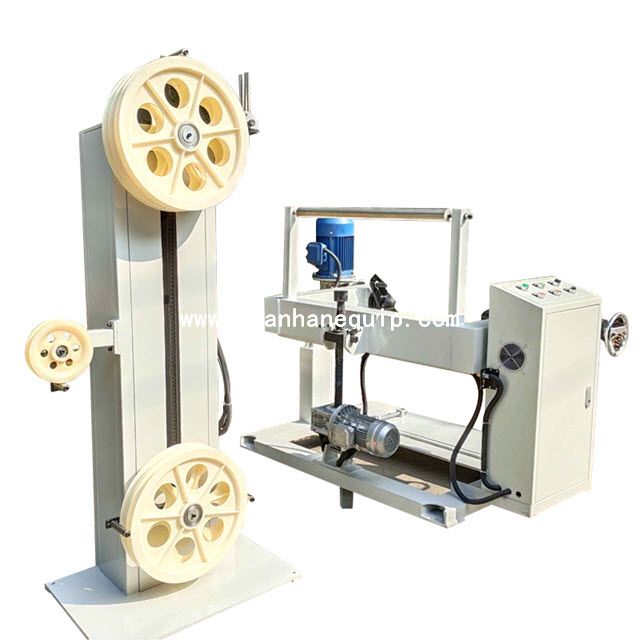

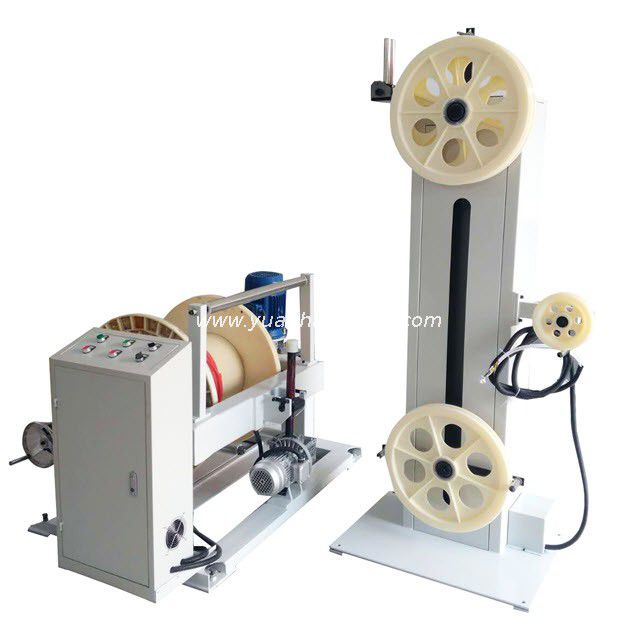

Heavy Duty Cable Pay-off MachineHeavy Duty Cable Pay-off Machine

This heavy duty cable feeder machine is suitable for automatic pay-off of large cables such as new energy vehicle cables, charging pile cables, power cables, photovoltaic cables, and BV cables.

Model:
  • YH-1000
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Application: automatic pay-off of large cables such as new energy vehicle cables, charging pile cables, power cables, photovoltaic cables, and BV cables.

  • Pay-off method: shaftless power pay-off, frequency converter automatically controls the pay-off speed, automatic wire feeding, automatic shutdown.

  • Pay-off tension: vertical pulley tension structure, add or subtract counterweight to adjust the pay-off tension.

ModelYH-1000
Suitable wire diameterφ3-20
Applicable spoolouter diameter φ600-1000mm, width 350-650mm
Maximum load1T
Maximum pay-off speed250m/min
Host power4kw
Total weightabout 600kgf
Power supplythree-phase four-wire system AC380V, 50/60Hz


×
