Aluminum Nose Clips Cutting Machine

Views: 400 Author: Site Editor Publish Time: Origin: Site

This fully automatic cutting machine is designed for cutting different kinds of materials like KN95 aluminum nose clips, hoses and tubes, wire ropes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc.

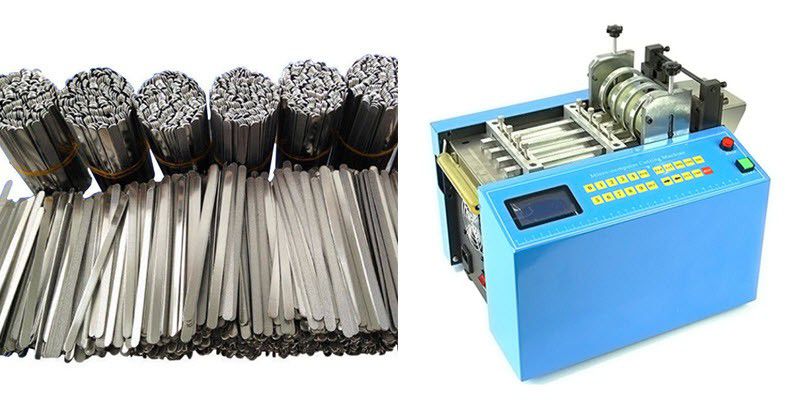

Aluminum Nose Clips Cutting Machine

Features

  • High efficiency and high accuracy: up to 150 times per minute;

  • Tolerance: +/- 0.5% of cutting length;

  • Cutting type: Cold cutting with a durable cold knife;

  • Suitable for cutting different kinds of materials like KN95 mask nose clips, hoses and tubes, wire ropes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc.

  • Automatic operation: It works automatically only by setting length and quantity;

  • Automatic stopper: It stops automatically if materials run out during operation;

  • Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

  • We supply different models to fit your requests.

Contact us for details:sales@yuanhanequip.com


Operation video of the aluminum nose clips cutting machine


Technical Data

Model ZCUT-100S ZCUT-120S ZCUT-160S ZCUT-200S ZCUT-300S

Cutting length

(mm)

1mm-99999mm  1mm-99999mm  1mm-99999mm  1mm-99999mm  1mm-99999mm
Cutting accuracy (mm) 0.1mm 0.1mm 0.1mm 0.1mm 0.1mm
Max cutting width (mm) 1-100mm  1-120mm  1-160mm  1-200mm  1-300mm
Cutting speed(p/min)  150 150 150 150 150
Knife max temperature (C) cold knife  cold knife  cold knife  cold knife  cold knife
Voltage/frequency(V/Hz) 110V/220V50/60 110V/220V50/60 110V/220V50/60 110V/220V50/60 110V/220V50/60
Rating Power(W)  500W 750W 1100W 1300W 1500W

Size(mm)

(LxWxH)

430×300×480 430×330×480 (430×380×480 430×400×480 430×510×480
Weight(NW) 30kg 32kg 34kg 36kg 40kg


×
