Automatic Elastic Band Cutting Machine, Cutter for Elastic Band

Views: 489 Author: Site Editor Publish Time: Origin: Site

This is an affordable hot and cold elastic band cutting machine. It features automatic cutting, simple operation, wide range of application, and high cutting quality. In addition of elstic band, it is also able to cut woven tape, silk tape, nylon tape and other band materials.

Model: ZCUT-102

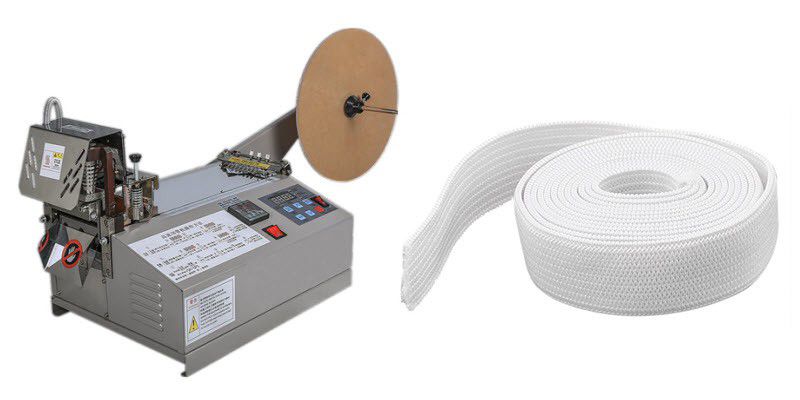

Automatic Elastic Band Cutting Machine

Features

  • High speed: 100-120pcs/min (Length=50mm)

  • High accuracy: stepper motor guarantees high accuracy

  • The cut surface is flat: the hot knife can heat seal the cut surface of the color ribbon and the light and thin textile belt, and the sealing is smooth and free of burrs.

  • The blade is made of imported high-quality steel and has a long service life.

  • Automatic operation: just set the length and number of cuts you need, and the rest of the work is done automatically.

  • Automatic pause: Once the material is used up, it will automatically stop working. Bouncer automatic alarm

  • Memory function: automatically store the cut length, cut quantity and cut speed before shutdown

  • File storage: 9 files can be stored, easy to extract at any time, reducing setup time

Contact us for details: sales@yuanhanequip.com


Operation video of the elastic band cutting machine


Technical Data

Model ZCUT-102
Cutting length 1-9999mm
Max. cutting width 100mm
Cutting speed 100-120 pcs/min
Weight 26kg
Voltage 110V/220V 50Hz/60Hz
Rated power 0.5kw
Max.temperature of cutter 350
Packing size 450*350*350mm
×
