Automatic 3-sided Terminal Crimping Machine - Dual Wires Combined Crimping Machine

Views: 14 Author: Site Editor Publish Time: Origin: Site

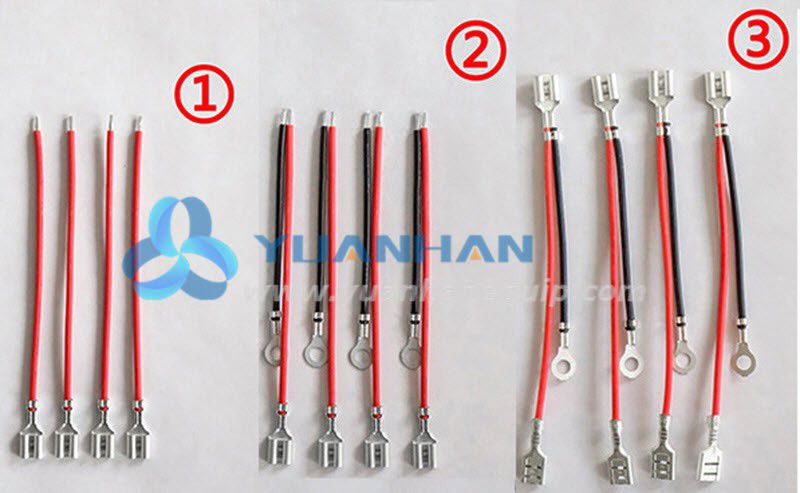

This is a fully automatic 3-sided wire crimping machine. It can process 2 different sized wires at the same time, one side crimping both wires into one terminal, and the other side crimping different terminals for each wire.

Model: YH-N03

Automatic 3-sided Terminal Crimping Machine - Dual Wires Combined Crimping Machine YH-N03

Features

  • Automatic wire cutting, stripping, crimping two wires into one terminal, and crimping two terminals on the other side for each wire

  • The equipment is highly automated, and an ordinary worker with simple training can control two fully automatic CNC double-wire combined terminal crimping machines

  • Modular design, simple adjustment, standard accessories, low maintenance costs

  • Man-machine interface, easy to learn and easy to operate

  • High efficiency, stability and intelligence

  • Use the touch screen operation to control the cutting length, stripping length, and crimping depth

  • It is the most automated and most efficient model on the market

Contact us: sales@yuanhanequip.com


Operation video of the Automatic 3-sided Terminal Crimping Machine - Dual Wires Combined Crimping Machine


Technical Data

Model YH-N03
Applicable mold OTP Horizontal Mold, Vertical Mold
Function

Wire cutting/striping, 2 wires 3 ends terminal crimping

Applicable terminals Joint terminal
Available wire size AWG18#-28#
Min. wire length 60mm
Wire cutting tolerance within 0.2% of total length
Stripping length min 10mm~max 30mm
Working efficiency 3200pcs/H
Rated power 3000W
Working pressure 0.4~0.6MPa
Power supply AC 220V 50HZ
Net. weight 420kg
Dimension 1.5m*0.8m*1.6m


×
