Flat Ribbon Cable Stripping Separating and Crimping Machine, Flat Ribbon Cable Splitting Stripping and Crimping Machine

Views: 647 Author: Site Editor Publish Time: Origin: Site

This is a semi automatic terminal crimping machine for flat cables. It can process flat cable stripping, splitting and crimping at one time. Applicable terminals: PH, EH, XH, SM, VH, ZH, DuPont terminals, etc. Capacity: 3,000-5,000 terminals/hour.

Model: YH-HP01

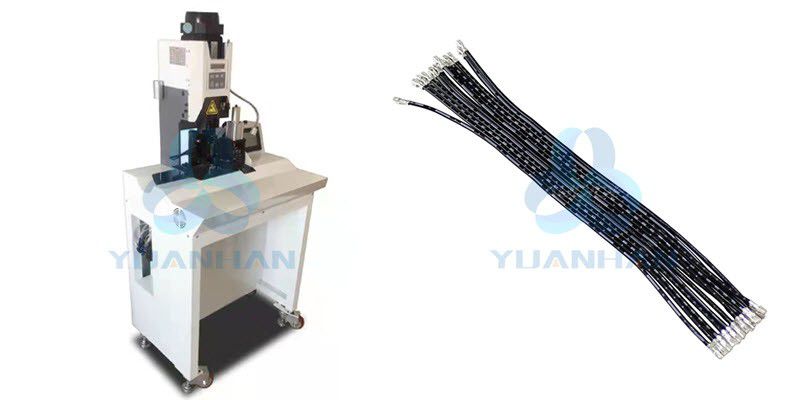

flat ribbon cable stripping separating and crimping machine

Features

  • Function: flat cable stripping, splitting and terminal crimping

  • Suitable for crimping PH, EH, XH, SM, VH, ZH, DuPont terminals, etc.

  • Semi-automatic production, saving labor

  • The terminals are pressed neatly with good consistency and stable quality

  • Using stepper motor, the crimping pressure is accurate, ensuring continuous performance

Contact us: sales@yuanhanequip.com


Operation video of the flat ribbon cable stripping separating and crimping machine


Technical Data

Model YH-HP01
Power supply 110/220VAC,50/60Hz
Available wire diameter inner cores: φ 0.8-4mm
Pin No. 2-12 pins
Splitting length 25-30mm
Stripping length 1-7mm
Speed 3,000-5,000 terminals/h
Crimping force 2T
Air pressure 0.4-0.7 Mpa
Dimension 65*45*135cm
Weight 75kg


×
