Automatic Cable Cutting Stripping Winding and Tying Machine

Views: 639 Author: Site Editor Publish Time: Origin: Site

This is a fully automatic all-in-one cable cutting stripping winding and tying machine. The stripping length of both ends reaches 370mm, and the speed can reach 600 pcs / hour.

Model: YH-CRT0

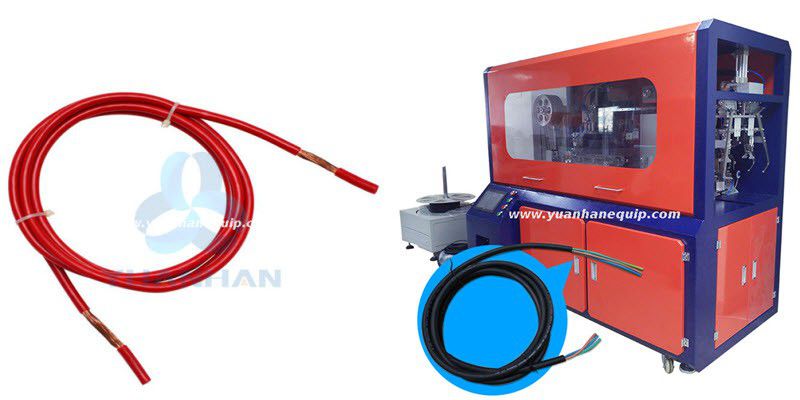

Automatic Cable Cutting Stripping Winding and Tying Machine

Features

  • Function: wire cutting, stripping, coil winding and tying

  • Winding circles and tying twice, and the stripping length of both ends reaches 370mm

  • High performance, speed can reach 600 pcs / hour, saving labor

  • Automated large screen PLC touch screen control circuit, easy to operate, good work stability

  • The finished product after winding is beautiful, generous, tidy and easy to pack

  • Humanized design reduces workers' fatigue

  • Adopt a full set of imported original AirTAC cylinder

Contact us: sales@yuanhanequip.com


Operation video of the automatic cable cutting stripping winding and tying machine


Technical Data

Model YH-CRT0
Stripping length of both ends 370mm
Wire Prefeeding 70KG
Applicable materials

wires and cables

Speed 20 seconds / pcs (2.5 sqmm 3C-8 meters wire)
Finished appearance circle and tying twice
Main motor servo motor and step motor
Theoretical yield <600pcs/h
Voltage 210-240V 5A
Inner diameter 120-160mm
Power consumption 12 hours 1.5 degrees
Applicable wire diameter 6.0-1.2mm
Gas consumption ordinary peeling machine level
Finished wire coil diameter < 45mm
Air pressure 0.4-0.55mpa
Suitable cable tie encapsulated iron core, coreless
Dimensions 1950*110*1800mm


×
