Wire and Cable Strip & Crimp Machine - Kunshan Yuanhan YH-2.0BT

Views: 12 Author: Site Editor Publish Time: Origin: Site

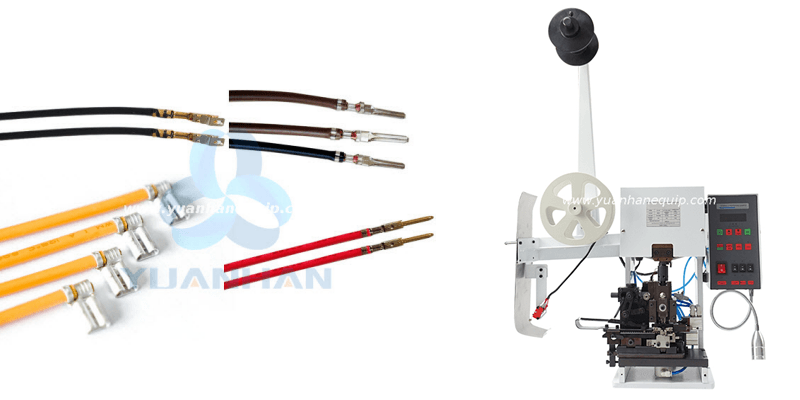

This is an automatic high-speed mute wire and cable stripping and crimping machine. It is equipped with high-precision control module and transmission mechanism, and the stripping and terminal crimping can be completed simultaneously.

Model: YH-2.0BT

Wire and Cable Strip & Crimp Machine

Features

  • Adopts advanced frequency conversion technology to precisely control the variable speed motor

  • Equipped with high-precision control module and transmission mechanism

  • The stripping and terminal crimping can be completed simultaneously

  • Low noise, low power consumption, and fast speed

  • It is good at processing very thin wires and multi-core shielded wires

Contact us: sales@yuanhanequip.com


Operation video of the Wire and Cable Strip & Crimp Machine


Technical Data

Model YH-2.0BT
Power supply 200V-240V 50/60Hz
Air source 0.3-0.4mpa
Applicable wire sizes AWG32#-AWG20#
Stripping length 1.0mm-6.0mm
Cutting tolerance 0.05mm-0.1mm
Position tolerance 0.05mm-0.1mm
Crimping capacity 2.0T
Stroke 30mm
Size 450x420x700mm
Total weight 70KG


×
