Automatic Cable Tie Machine for Stator Coil

Views: 143 Author: Site Editor Publish Time: Origin: Site

The nylon cable tie tying machine for motor stator is suitable for all kinds of wire harness bundling, especially for internal harness bundling of series motor, soymilk motor, fan motor, meat grinder motor, drone motor, home appliance motor and other large electromechanical equipment motor.

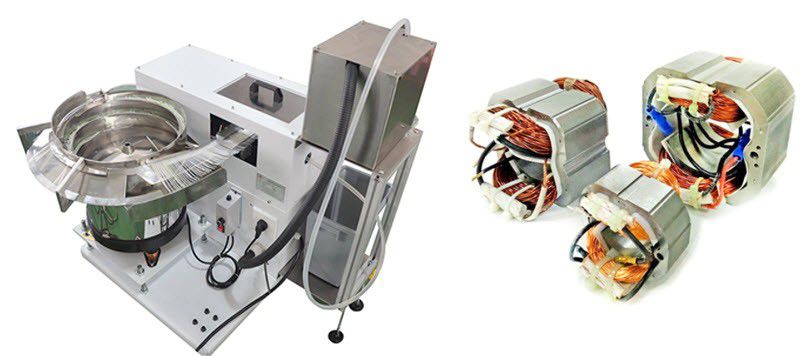

Automatic Cable Tie Machine for Stator Coil

Features

  • Put the disordered nylon ties into the vibrating plate at will, and the nylon ties are is transmitted through the pipe to the machine head for binding

  • Step on the pedal, the machine will automatically complete feeding, winding, tightening, cutting, throwing waste

  • Complete all actions in 0.7 seconds. Including the auxiliary time, the whole cycle is about 1.3 seconds. One machine can replace 7-8 workers

  • Waste is automatically collected in the waste bin through a dedicated recycling system (optional)

  • Binding force or tightness can be adjusted by knob

  • PLC control system, touch screen display, simple operation

  • Can cooperate with the mechanical hand in the automatic production line to achieve automatic tying, can also be fixed on the table as a desktop tying machine

  • Suitable for all kinds of wire harness bundling, especially for internal harness bundling of series motor, soymilk motor, fan motor, meat grinder motor, drone motor, home appliance motor and other large electromechanical equipment motor


Contact us for details: sales@yuanhanequip.com


Operation video of the Automatic Cable Tie Machine for Stator Coil


Specifications

Model YH-660D
Cable tie specification 2.5X100 mm
Min. bundle diameter ¢ 1.0 mm
Max. bunching diameter ¢20 mm
Max. beam tube diameter ¢18 mm
Bundling efficiency 0.8 s/pcs
Power 220/110V, 50/60Hz
Air pressure 5 Kg/cm2
Dimension L930 * W 760 * H 970mm
Handheld gun size 220*85*52mm
Weight 80kg (with 4 wheels, move easily)


×
