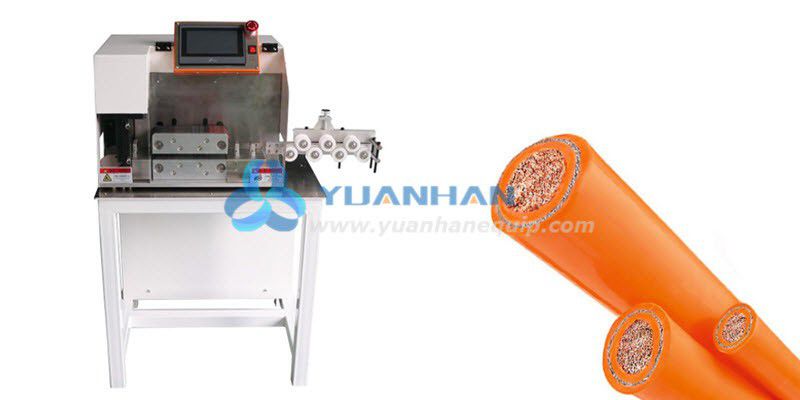

Wire, Cable and Tubing Cutting Machine YH-QC300

Views: 164 Author: Site Editor Publish Time: Origin: Site

This is an all-in-one cable and tube cutting machine specially designed for cutting thick tubes and large cables up to 300 square mm. Featuring positioning function, it can process accurate cutting according to the set length.

Wire, Cable and Tubing Cutting Machine YH-QC300

Features

  • This is an all-in-one cable and tube cutting machine specially designed for cutting thick tubes and large cables up to 300 mm2;

  • Featuring positioning function, it can process accurate cutting according to the set length;

  • Cutting diameter: 1-30mm, cutting width: 80mm.

Contact us for detail: sales@yuanhanequip.com


Operation video of Wire, Cable and Tubing Cutting Machine


Specifications

Model YH-QC300
Control system PLC human machine interface
Cutting method cylinder
Cutter stroke 50mm
Voltage 220V 50-60HZ
Air pressure 0.5-0.7Mp
Power 200W
Cutting diameter 1-30mm
Cutting width 80mm
Speed 20-60 p/m(depending on length)
Size 570x490x460mm
Weight 70KG
×
