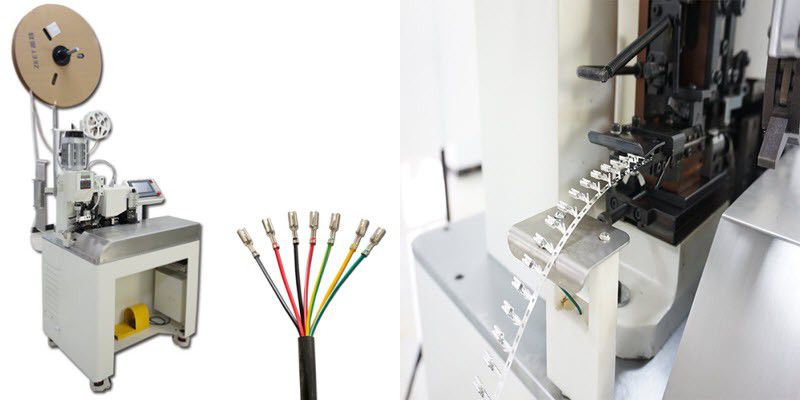

The multi-core cable stripping and ferrules crimping machine is especially designed for processing the core wires of multi-conductor sheathed cable. The outside jacket should be pre-stripped before using this machine.
The multi-core sheathed cable stripping and ferrules crimping machine can complete wire feeding, inner core stripping, terminal crimping accurately and continuously.
This machine is especially designed for processing the core wires of multi-conductor sheathed cable. The outside jacket should be pre-stripped before using this machine, and the operator only need tro place the cable in the working position, then the machine will strip wire and crimp terminal automatically. It greatly imporoves the multi-core sheathed cable processing effeciency.
The control system adopts PLC and color touch scree, the moving parts are driven by servo motors, simple operation and high processing accuracy.
Contact us for details: email@example.com
Operation video of the multi-core cable stripping and crimping machine
|Function||Inner core wire cutting, stripping and terminal crimping|
700-800 pieces/hour (6 cores)
Depending on worker,wire diameter and number of inner conductors.
|Jacket strip length||Shortest 40mm (8 cores)|
|Strip length of inner core||1-7mm (7-10mm customizable)|
|Number of inner conductors||1-12 cores|
|Inner core single wire diameter|| |
|Mold type||Horizontal die continuous terminal (straight mold customizable)|
|Remark||Cannot process teflon and silicon wires|
