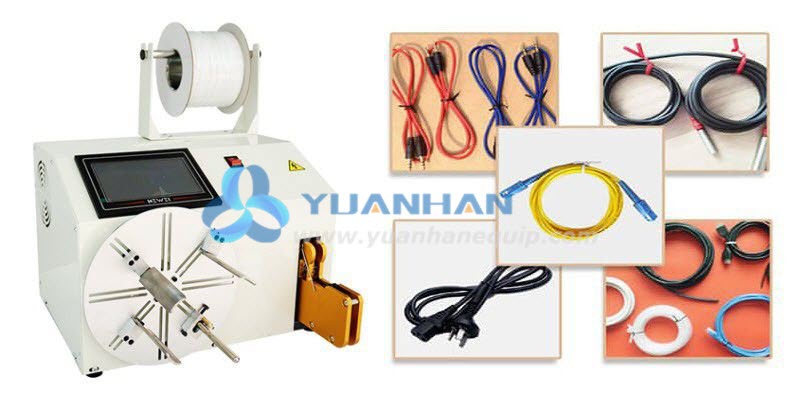

This semi automatic wire winding and tying machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.
This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.
PLC program control, LCD text parameter setting, easy to operate
Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire
This machine can customize the number of coils, the number of ties and the length of the cable tie
The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation
Contact us for details: firstname.lastname@example.org
Operation video of the cable coiling and binding machine
|Voltage||AC 220V/110V 50Hz/60Hz|
|Winding diameter||50-200mm (adjustable)|
|Winding speed||1-30 levels (adjustable)|
|Winding circle||1-999 circles (adjustable)|
|Twist bundle length||60-140mm (adjustable)|
|Binding diameter ||φ5-40mm|
|Binding circle||Adjustable (suggest 2-6 circles)|
|Twist speed||1-2 levels (suggest level 2)|
|Twist ties||Encased iron core PE material|
|Twist Shape||Round shape & long & 8 shape|
|Dimension ||450x390x580mm (LxWxH)|
