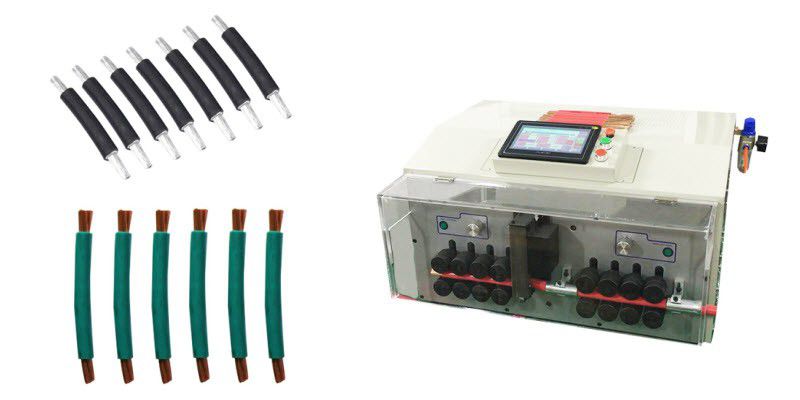

Automatic Thick Cable Cutting and Stripping Machine

Views: 328 Author: Site Editor Publish Time: Origin: Site

This automatic big cable cutting and stripping machine is suitable for cutting and stripping PVC cables, Teflon cables, silicone wires, fiberglass wires, etc. Available wire sizes: 16-150 sq mm.

Model: YH-BMAX3

thick cable cut strip machine

Contact us for details: sales@yuanhanequip.com


Features

  • This large cable stripping machine integrates electromechanical and microcomputer, and is a fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan

  • This machine is widely used in wire processing of various industries such as electronics industry, automobile and motorcycle parts industry, electrical appliances, motors, lamps and toys

  • Suitable for cutting and stripping PVC cables, Teflon cables, silicone wires, fiberglass wires, etc.

  • LCD screen, simple operation, convenient maintenance, stable performance, fast speed and high precision

  • Wire length can be set freely according to customer request

  • Available wire sizes: 16-150mm2

  • It can also cut flat cables, sheathed cables, power cables, cable conductors and more


Operation video of the thick cable cut and strip machine


Technical Data

Model

YH-BMAX3

Input Voltage

AC220/AC110 60HZ/50HZ

Power

2000W

Cutting Length

0.1-350m

Stripping length

head: 0-150mm

tail: 0-100mm

Cutting Tolerances

± (0.0001xL)mm

Available wire size

16-150mm2

OD of wire

25

Applicable wire

PVC, Teflon, glass wire, multi-strand   steel wire

Tool material

Imported high speed steel

Stripping speed

1500-2000 (L=100MMpcs/hour)

Drive method

16-wheel individual drive


×
