Low-cost Cable Core Wires Stripping and Crimping Machine

Views: 455 Author: Site Editor Publish Time: Origin: Site

The multi-conductor sheathed cable terminal crimping machine can complete core wires stripping and terminal crimping accurately and continuously.

Model: YH-68210B

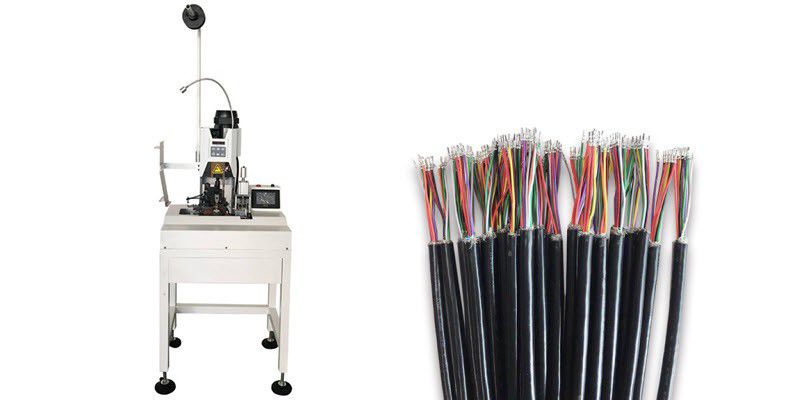

cable core wires stripping crimping machine

Contact us for details: sales@yuanhanequip.com


Features

  • The machine is controlled by highspeed and high-accuracy motor.

  • The machine can complete core wires stripping and terminal crimping accurately and continuously.

  • All adjustment can be done by touchable interface, simple and quick.

  • The equipment is made of high-quality steel material, which is hard and durable.


Operation video of cable core wires stripping and crimping machine


Technical Data

Model YH-68210B
Power AC220V 50HZ single phase
Function wire cutting, stripping inner and outer jacket, and crimping two different terminals on one end
Capacity 19pcs/min(within 200mm)
Wire size 2*0.5 sqmm - 2*0.75 sqmm
Cutting length 200mm-9999mm
Stripping length

outer sheath: 40mm-50mm

inner insulation: 1mm-10mm

(the stripping length can be customized as request)

Cutting accuracy 0.1mm+cutting length*0.2%
Crimping capacity 2.0T
Air pressure 0.6-0.7Mpa
Detection device lack of wire or knotted, terminal crimping detection
Dimension 1700Wx1000Lx1300H (mm)
Weight 230KG
Other as request


×
