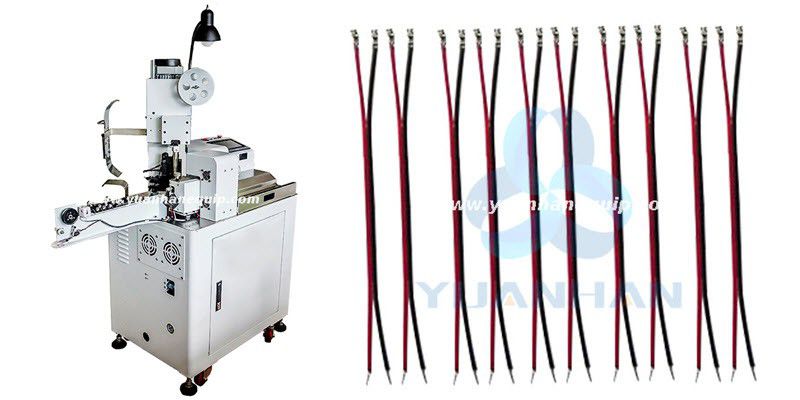

Automatic Twin Flat Cable Stripping Tinning and Crimping Machine

Views: 10 Author: Site Editor Publish Time: Origin: Site

This fully automatic twin flat cable stripping tinning and crimping machine is widely used to crimp twin parallel wires and it is able to split the wire before crimping. From wire feeding, cutting, splitting, stripping, tinning to terminal crimping, the whole procedure is fully automatic.

Model: YH-R03

Automatic Twin Flat Cable Stripping Tinning and Crimping Machine

Features

  • Widely used to crimp twin parallel wires and it is able to split the wire before crimping.

  • From wire feeding, cutting, stripping, splitting to terminal crimping, the whole procedure is fully automatic.

  • All the settings will be done through easy operation on LCD touchscreen, the machine will store the parameters for future use and control allthe settings to work exactly as you set.

  • All the wearing parts are made of topquality material, high precision and durable.

  • Both side-feeding die and straight-feeding die are available for processing, and the changeover between different die sets are easy and timesaving.

Contact us: sales@yuanhanequip.com


Operation video of the Automatic Twin Flat Cable Stripping Tinning and Crimping Machine


Technical Data

Model  YH-R03
Product features Wire double-end cutting and stripping, crimping terminal on one end, twisting and tinning on the other end
Capacity 2000 - 4500 pcs / hour
Cutting length 35-999mm
Stripping length

0-10mm

Wire range       AWG18-28#
Tool material  Imported tungsten steel / high-speed net
Pneumatic accessories Standard AirTAC
Detection device Crimp detection, lack of wire detection, pressure detection, terminal detection
Air pressure 0.5-0.7MPA
Power supply AC220V
Dimension 700(L)*600(W)*1500(H)mm (Not including packing)
Weight About 260KG


×
