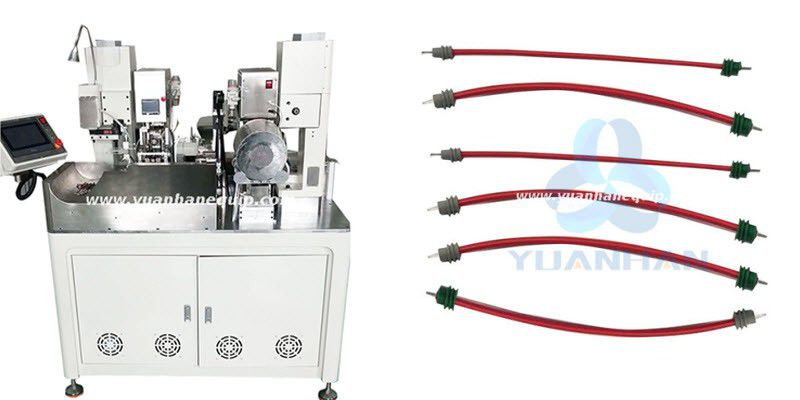

Fully automatic wire cut strip & crimp machine with both sides sealing

Views: 752 Author: Site Editor Publish Time: Origin: Site

This fully automatic wire cutting stripping & crimping machine with both sides sealing is cable to process wire cutting, single end stripping, both ends stripping, two ends wire rubber seals loading and two ends terminal crimping.

Model: YH-SSF01

Fully automatic wire cut strip & crimp machine with both sides sealing

Features

  • Wire cutting, single end stripping, both ends stripping, two ends wire rubber seals loading and two ends terminal crimping

  • Compact design, excellent concept, space saving

  • Easy to use KINCO touch screen

  • Quickly change procedures and materials

  • Efficient stepper drive, high precision, fast speed

  • Easy maintenance

  • Cost-effective

  • Full digital debugging

Contact us: sales@yuanhanequip.com


Operation video of the fully automatic wire cut strip & crimp machine with both sides sealing


Technical Data

Model  YH-SSF01
Power supply  AC220V/50/60HZ(110V/60Hz optional)
Capacity 3000 pieces/hour(Length within 100mm)
Wire size AWG#28-AWG#16
Cutting length 50-9999mm
Cutting tolerance  within 1mm + cutting length x 0.2%
Stripping length  1.5-10 mm
Crimping force 2.0/3.0 Ton
Air pressure 4-6kgf (use clean dry air)
Testing device Whether lack of wire and terminal detect, wire seals detect, low pressure detect
Dimension 800Wx1000Lx1500H mm
Net weight  About 440 kg


×
