Automatic Wire Cutting Machine, Cable Cutting Machine

Views: 593 Author: Site Editor Publish Time: Origin: Site

A versatile and reliable machine for cutting to length of heat shrink tubes, fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc. The higher power ZCUT-100ST and ZCUT-100GT are good for cutting wire and cable.

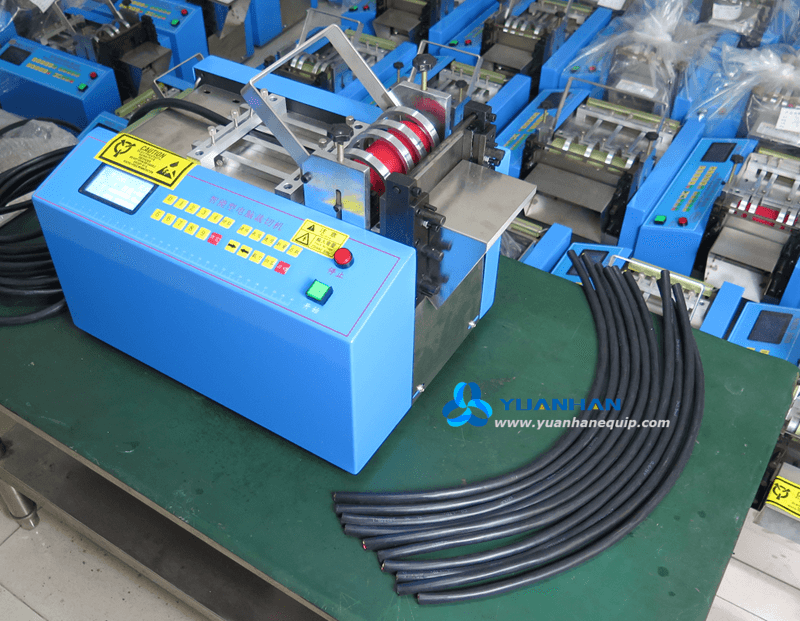

Automatic Wire Cutting Machine

Features

  • High efficiency and high accuracy: up to 120-150 times per minute;

  • Tolerance: +/- 0.5% of cutting length;

  • Cutting type: Cold cutting with a durable cold knife;

  • Suitable for cutting fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, electric cables, and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

  • Automatic operation: It works automatically only by setting length and quantity;

  • Automatic stopper: It stops automatically if materials run out during operation;

  • Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

  • We supply different models to fit your requests.

Contact us: sales@yuanhanequip.com


Operation video of the automatic wire cutting machine


Technical Data

Model ZCUT-100S ZCUT-100ST ZCUT-100GT
Application plastic product general metal product thick metal product
Available width 95mm
Available thickness 15mm
Cutting length 1-100000mm
Knife cold knife
Power supply 110/220VAC, 50/60Hz
Power 500W 900W 1350W
Speed 120 pcs/min 150 pcs/min 150 pcs/min
Weight 30kg
Dimensions 43*33*48cm


×
