Automatic wire terminating machine, automatic cable terminal crimping machine

Views: 539 Author: Site Editor Publish Time: Origin: Site

This fully automatic wire terminating machine is able to process wire cutting, double-end stripping, crimping on one end, and twisting wire on one end. It can crimp various terminals to single wire, two wires, thin wires, thick wires and parallel wires.

Model:YH-D01/YH-D02/YH-D03/YH-D04/YH-D05/YH-D06

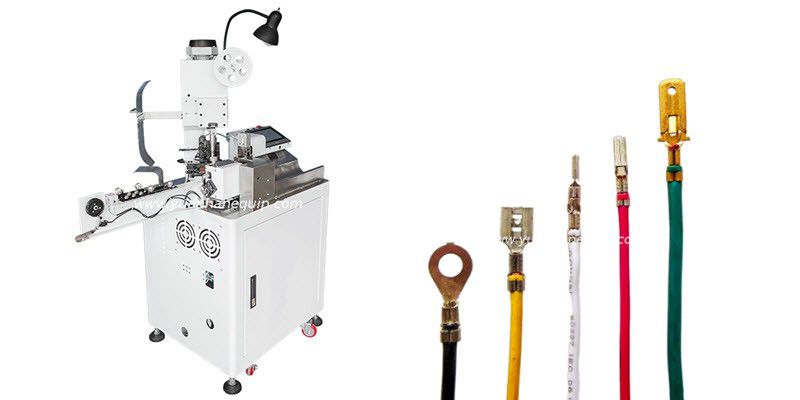

Automatic wire terminating machine

Features

  • Being able to crimp terminals to single wire, two wires, thin wires, thick wires and parallel wires

  • Function: wire cutting, double-end stripping, crimping on one end, twisting wire on one end

  • Compact modular design, saving space

  • High-end and high-precision components ensure good quality of the machine

  • Easy-to-use touch screen

  • Fast speed and high quality, greatly saving labor

Contact us: sales@yuanhanequip.com


Operation video of the automatic wire terminating machine


Technical Data

Model

YH-D01

YH-D02

YH-D03

YH-D04

YH-D05

YH-D06

Type

General model

Two-wire model

Thin wire model

Gold pin model

Thick wire model

Parallel wire model

Product  features

wire cutting, double-end stripping, crimping on one end, twisting wire on one end

Machine capacity

3800-7600 pieces / hour

Wire cutting length

45-999mm

Wire stripping length

0-10mm

Wire twisting length

Backend   2-10mm

Suitable wire sizes

AWG18-28#

AWG18-28#

AWG20-32#

AWG18-28#

2.5mm2

AWG18-28#

Tool material

Imported tungsten steel / high-speed net

Pneumatic accessories

Standard AirTAC

Air pressure

0.5-0.7MPA

Power

AC 220V

Machine size

700(L)*600(W)*1500(H)mm(Not including packing)

Weight

About 240KG


×
