Wire Shieldings and Braidings Cutting Machine, Cutting Cable Shieldings and Braidings Machine

Views: 367 Author: Site Editor Publish Time: Origin: Site

This equipment is mainly used to cut cable shieldings and braidings. It is composed of mesh expanding parts, internal and external knife cutting parts, servo feeding parts, clamping parts, sheet metal cover, air circuit, electric control and so on.

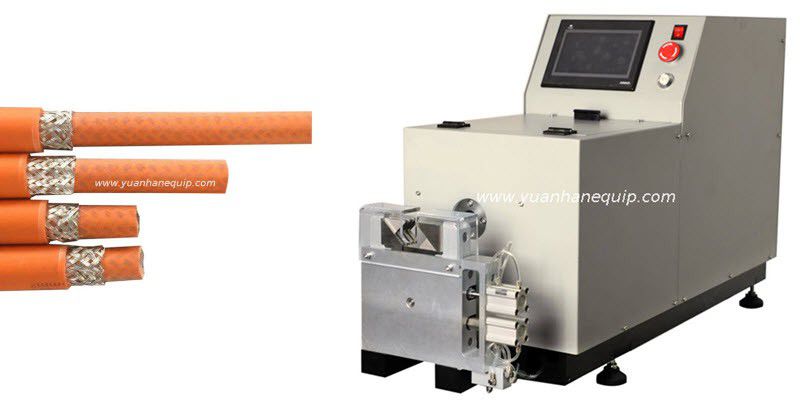

Wire Shieldings and Braidings Cutting Machine

Features

  • Mainly used to cut wire and cable shielings and braidings

  • Cutting length: 5-100mm

  • PLC touch screen control. Foot, button and touch screen trigger cutting, convenient and user-friendly.

Contact us: sales@yuanhanequip.com


Operation video of the Wire Shieldings and Braidings Cutting Machine


Technical Data

Model YH-PB100
Cutting length 5-100mm
Power supply 220V 50/60HZ 1500W
Wire processing range 6-70 square mm
Air pressure 0.6MPa
Weight 110KG
Dimension 1100*335*650mm


×
