Cable Coiling Bundling and Meter Counting Machine

Views: 737 Author: Site Editor Publish Time: 2020-01-07 Origin: Site

This automatic cable winding and tying machine features counting meter function. It is suitable for processing of AC power cord, DC power cord, USB cable, video cable, and HDMI high-definition cable with different diameters.

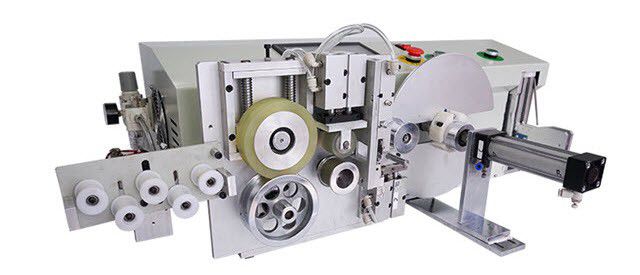

Model: YH-S100

automatic cable coiling and tying machine

Features

Function: counting meters, winding, cutting and tying cables and wires
Suitable for processing of AC power cord, DC power cord, USB cable, video cable, and HDMI high-definition cable with different diameters
The finished product is very neat, being a good helper for bundling wires

Operation video of automatic wire coiling tying and counting meter machine

Technical Details

Model	YH-S100
Winding cycle	1-999 cycle
Winding speed	1-4 cycle/s
Available wire size	Ø2-7mm or Ø 6-10mm
Winding inner diameter	Adjustable from 80 to 250mm
Winding outer diameter	Max 300mm
Available wire width	10-70mm
Suitable wire shape	Round wire, flat/ribbon wire, 2-pin double wires, etc.
Dimension	11001150430mm
Net weight	60KG
Power	AC220V 50hz/110v 60HZ
Power Rating	Max 1000W
