Cable Feeder System

Views: 647 Author: Site Editor Publish Time: Origin: Site

The automatic wire feeder machine delivers the wire feeding results you need for maximizing automated wire harness processing productivity and quality. Its maximum feeding speed is 50 m/min, and the maximum processing wire diameter is 25mm.

Model: YH-680W

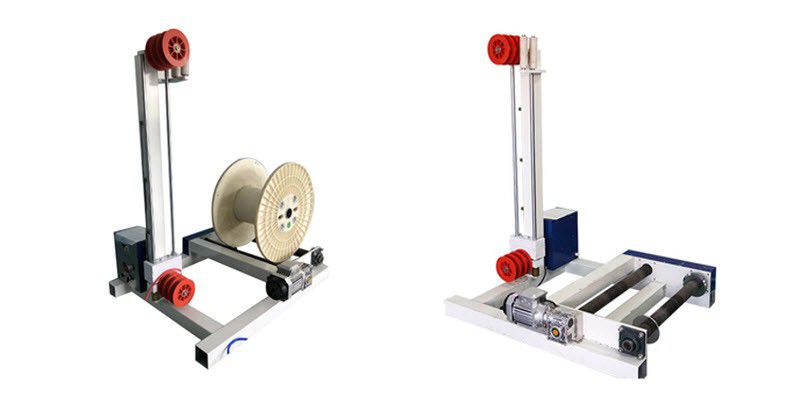

cable feeder machine

Features

  • This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.

  • Main body material: welded with high quality national standard rectangular tube, the structure is firm and the appearance is beautiful

  • Maximum feeding speed is 50 m/min, and maximum wire diameter is 25mm

  • Coil size: 300-1500mm diameter (customer needs to provide specific coil size)

  • Wire clamp: adaptive active wheel, maximum width 680mm

  • Maximum coil weight: 1.5T

Contact us for detail: sales@yuanhanequip.com


Operation video of the cable feeder system


Specifications

Model YH-680W
Voltage 220V
Main body material high quality national standard rectangular tube
Take off power

0.75kw domestic brand geared motor with vector inverter, inverter control line speed,

maximum line speed 50m/min, maximum wire diameter 25mm
Cable lift Manual handling of the reel
Coil size

300-1500mm diameter (customer needs to provide specific coil size)
Coil clamping Adaptive drive wheel with a maximum width of 680mm
Max coil weight 1.5T
Tension wheel

The tension wheel is divided into the upper fixed wheel set (3 pcs) and the lower moving

wheel set (3 pcs), and the tension wheel diameter is 140mm.
Speed

When the computer wire stripper works, the tension wheel moves accordingly,

and the potentiometer rotates through the sprocket, and the potentiometer feeds back

the signal to the inverter to control the speed of the pay-off motor, thereby controlling

the speed of the line to be synchronized with the computer stripping machine.
Tension adjustment

Increase or decrease the weight on the chain to adjust the tension of the cable

Learn more about the cable feeder system


Get a free quote for your project. Click here.
