Single-piece Tubular Terminal Crimping Machine

Views: 168 Author: Site Editor Publish Time: Origin: Site

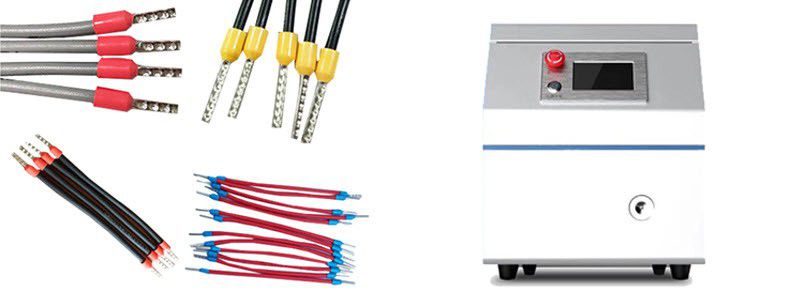

This pre-insulated terminal crimping machine is suitable for crimping a variety of loose tubular terminals onto cables.

Model: YH-3PC

Single-piece Tubular Terminal Crimping Machine

Features

  • Suitable for crimping a variety of loose tubular terminals onto cables

  • Wire stripping and crimping can be finished at one time

  • The terminals are crimped on all four sides, no need to replace the crimping die

  • LCD display, automatically adjust stripping depth and length, as well as crimping height

  • Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick

  • Fully sealed stripping and crimping, safe and reliable

Contact us for details: sales@yuanhanequip.com


Operation video of the pre-insulated terminal crimping machine


Specifications

Model YH-3PC
Capacity Cable Stripping, Terminal Inserting and Terminal Crimping are finished in 2.5 seconds
Applicable specs

0.5mm2 – 2.5 mm2(Terminal conduit length should be less than 12mm)

4.0 mm2(Terminal conduit length should be less than 10mm

Detect device detect lack of terminals
Power AC220V/50HZ single phase
Gas source 0.5-0.8Mpa (please use clean and dry air)
Dimensions L450mm x W350mm x H425mm
Weight about 40kg

Learn more about the pre-insulated terminal crimping machine

×
