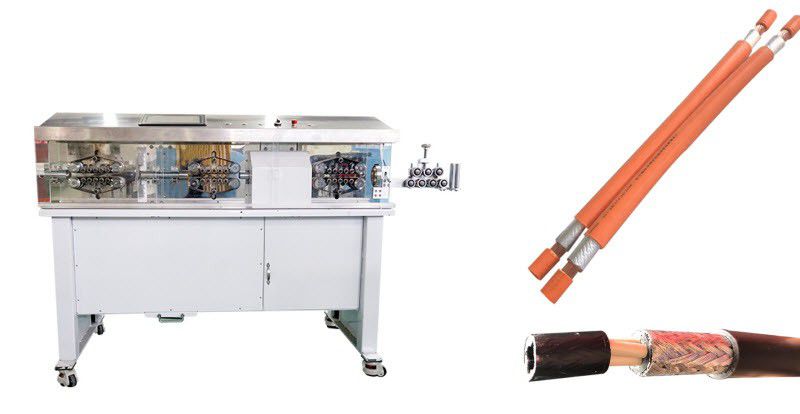

This big cable cutting and stripping machine is a new type of cable processing equipment controlled by microcomputer. The applicable wire sizes range from 10-120 sq mm. It is mainly used for processing automotive wiring harness, power cables, electric control cabinet cables, battery box cables, new energy vehicle wiring harness, charging pile harness, charging gun harness, BV hard wires, and BVR soft wires.
Applicable wire sizes: 10-120 mm2
Mainly used for processing automotive wiring harness, power cables, electric control cabinet cables, battery box cables, new energy vehicle wiring harness, charging pile harness, charging gun harness, BV hard wires, and BVR soft wires
Cutting to length as request, stripping the insulation at both ends, and carry out multi-level stripping processing at the same time
Industrial grade control chip with high-precision motor and driver, enabling the machine to operate at high speed for a long time
Controller control, touch screen operation mode, saving 100 sets of stripping procedures
This machine has strong functions, and multiple ports are reserved for the input and output signals of some auxiliary equipments
Auxiliary equipment: automatic wire feeder, receiver, robot, winding machine, etc.
Contact us for more information: email@example.com
Operation video of the big cable cutting and stripping machine
|Display||7 inch real color touch screen|
Cutting and stripping
|Head stripping|| |
RV cable completely falls off up to 120mm, and sheathed cable completely falls off up to 500mm.
|Tail stripping|| |
|Cable types|| |
Sheathed cables, PVC cables, etc.
|Applicable wire sizes|| |
|Cutting tolerance|| |
Within 0.002*L（L=cutting length）
|Max catheter dia.|| |
|Material of blades|| |
imported high speed steel
|Driving mode|| |
32 wheel drive (silent hybrid stepping motor, servo tool holder)
|Feeding method||Feeding with belt, the cable has no indentation|
The machine can be customized for processing special cables, and the sample cable should be sent to us for test.
