The coaxial cable stripping machine is mainly used for the processing of coaxial cables and special single wires.Model:
Stripping Machines for Coaxial Cables | Coaxial Cable Stripper YH-2515
Views: 844
Author: Site Editor
Publish Time: 2019-12-25
Origin: Site

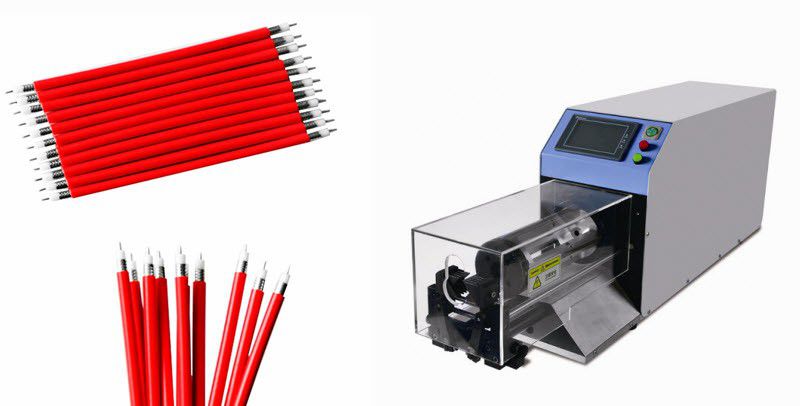

The coaxial cable stripping machine is mainly used for the processing of coaxial cables and special single wires.
Model: YH-2515
Features
Suitable for stripping coaxial cables and special single wires
Easy-to-use LCD interface, rotary blade, simple tool change, easy setting of each function, control by foot pedal, safe and simple
Contact us for details: sales@yuanhanequip.com
Specifications
| Model | YH-2515 | YH-2520 | YH-3515 | YH-4520 |
| Applicable wire | Coaxial cable,
car cable | Coaxial cable,
car cable | New energy cable, thick cable | New energy charging gun |
| Peeling length | ø0.1mm-ø200mm | ø0.1mm-ø150mm | 150mm | 200mm |
| Peeling length set unit | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Cutting diameter range | ø3.0-ø25mm | ø3.0-ø25mm | ø8.0-ø35mm | ø12-ø45mm |
| Max. stripping layer | 9 layer | 9 layer | 9 layer | 9 layer |
| Peeling method | Rotary knife | Rotary knife | Rotary knife | Rotary knife |
| Tool material | Imported tungsten steel | Imported tungsten steel | Imported tungsten steel | Imported tungsten steel |
Power
| 800W | 630W
| 1000W
| 1000W
|
Weight
| 50KG
| 45KG
| 60KG
| 70KG
|
Dimensions
| 1000*225*400mm | 920*220*400mm | 1040*280*550mm |
1160*280*550mm
|
