Coated Steel Cable Cutting and Stripping Machine, Steel Cable Coating Removing Stripper

Views: 834 Author: Site Editor Publish Time: Origin: Site

This coated steel cable cutting and stripping machine adopts 12-wheel drive, featuring strong power and high precision. The belt feeding system can ensure that the surface of the wire is not damaged. It is widely used in the processing of military, medical, communications, power cables, sheathed wires, soft and hard wires.

Model: YH-BGS

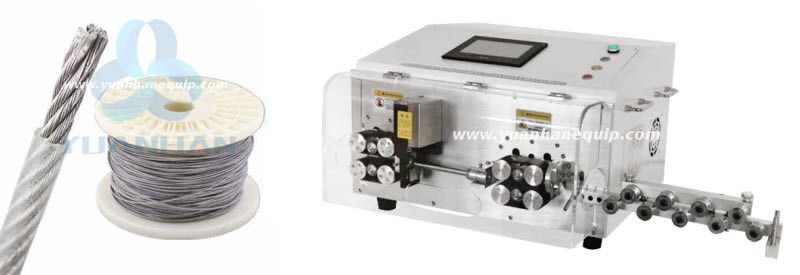

coated steel cable cutting and stripping machine

Features

  • This machine adopts 12-wheel drive, featuring strong power and high precision. The belt feeding system can ensure that the surface of the wire is not damaged. It is widely used in the processing of military, medical, communications, power cables, sheathed wires, soft and hard wires.

  • The pressing force of the inlet wheel and the outlet wheel can be directly set in the program, without manual adjustment of the wheel pressure. The outlet wheel also has the function of automatic lifting. The outlet wheel can automatically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased. The lifting height of the outlet wheel can also be directly set in the program.

  • The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training; the machine also has a three-layer stripping program, which can be divided into three layers, or the longest stripping length Three times of peeling; 100 groups of program memory functions are provided, and the processing parameters of different wires can be stored in different program numbers.

  • It can be equipped with branching jigs, cutting jigs, and inkjet printers.

Contact us: sales@yuanhanequip.com


Operation video of the coated steel cable cutting and stripping machine


Technical Data

Model YH-BGS
Display mode 7-inch colorful PLC touch screen
Memory function up to 100 groups of programs can be stored
Applicable wire diameter multi-strand copper wire, coaxial cable, sheathed wire, etc.
Drive mode 12-wheel drive, synchronous belt wire feeding
Applicable core area BVR2.5.0-70mm2 (BV35 mm2, sheath wire outer diameter 18mm)
Blade material imported high-speed steel
Large catheter diameter ø20mm
Working voltage 220V/50Hz
Cutting length range 0-100 meters
Rated power 800W
Stripping length at both ends 0-300mm for wire head, 0-150mm for wire tail
Dimensions

700*640*480mm

Minimum length of glue retention 50mm
Weight about 100kg
Cutting tolerance ±(0.002mm*L) (L=cutting length)
Stripping speed 1,500-2,500 per hour


×
