Fully Automatic Single End Wire Terminal Crimping Machine

Views: 563 Author: Site Editor Publish Time: Origin: Site

This fully automatic single head terminal crimping machine is able to process wire cutting, double-end stripping, crimping on one end, and twisting wire on one end. It can crimp various terminals to single wire, two wires, thin wires, thick wires and parallel wires.

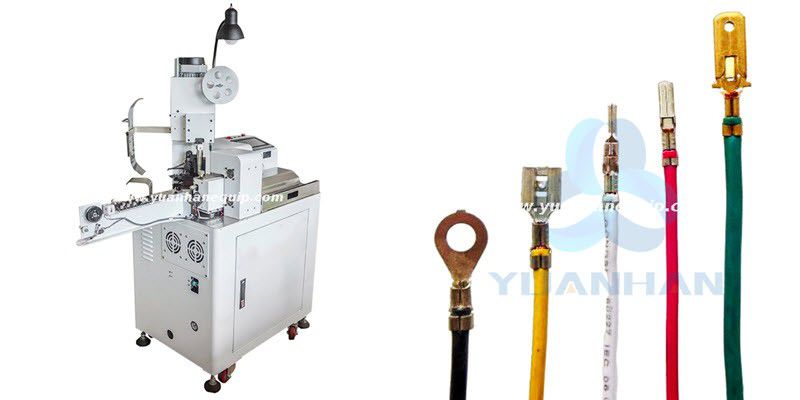

Fully Automatic Single End Wire Terminal Crimping Machine

Features

  • Being able to crimp terminals to single wire, two wires, thin wires, thick wires and parallel wires

  • Function: wire cutting, double-end stripping, crimping on one end, twisting wire on one end

  • Compact modular design, saving space

  • High-end and high-precision components ensure good quality of the machine

  • Easy-to-use touch screen

  • Fast speed and high quality, greatly saving labor

Contact us: sales@yuanhanequip.com


Operation video of the Fully Automatic Single End Wire Terminal Crimping Machine


Technical Data

Model

YH-D01

YH-D02

YH-D03

YH-D04

YH-D05

YH-D06

Type

General model

Two-wire model

Thin wire model

Gold pin model

Thick wire model

Parallel wire model

Product  features

wire cutting, double-end stripping, crimping on one end, twisting wire on one end

Machine capacity

3800-7600 pieces / hour

Wire cutting length

45-999mm

Wire stripping length

0-10mm

Wire twisting length

Backend   2-10mm

Suitable wire sizes

AWG18-28#

AWG18-28#

AWG20-32#

AWG18-28#

2.5mm2

AWG18-28#

Tool material

Imported tungsten steel / high-speed net

Pneumatic accessories

Standard AirTAC

Air pressure

0.5-0.7MPA

Power

AC 220V

Machine size

700(L)*600(W)*1500(H)mm(Not including packing)

Weight

About 240KG


×
